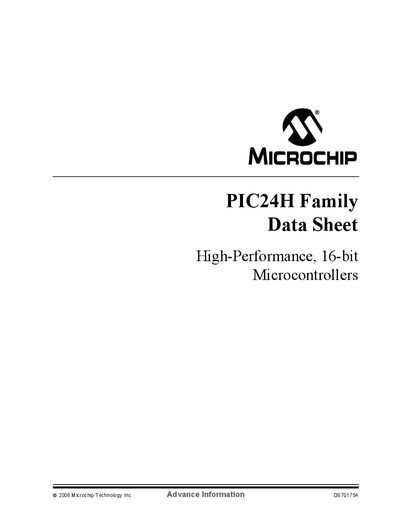

This is a technical document published by Microchip Technology Inc. about the PIC24H family of microcontrollers, which has high performance and 16-bit characteristics.
This document provides a comprehensive overview of the Microchip PIC24H General Purpose Family of High-Performance, 16-bit Microcontrollers. It highlights key architectural features such as the modified Harvard architecture, compiler-optimized instruction set, and support for up to 4M instruction words in program memory.
The datasheet details various on-chip peripherals including Direct Memory Access (DMA), an Interrupt Controller with 5-cycle latency, and extensive Digital I/O capabilities. It also covers communication modules like SPI, I2C, UART, and Enhanced CAN, as well as Analog-to-Digital Converters operating at speeds up to 2.2 Msps.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Maximum MIPS Performance | 40 MIPS @ 3.0-3.6V |
| Program Memory Size | Up to 256 Kbytes |
| Data SRAM Size | Up to 16 Kbytes |
| A/D Converter Resolution | 10-bit or 12-bit |
| Digital I/O Pins | Up to 85 programmable digital I/O pins |
The device operates at a 3.3V (±10%) operating voltage.
There are up to 118 interrupt vectors available in the PIC24H family.
