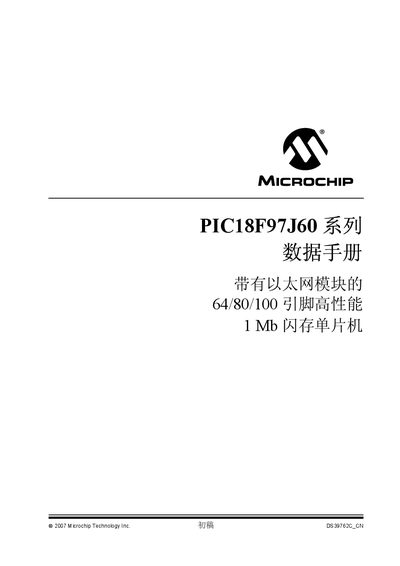

Microchip PIC18F97J60 Series Datasheet
This document is a datasheet for the Microchip PIC18F97J60 series, a high-performance 1 Mb Flash microcontroller featuring an integrated Ethernet module. It covers technical specifications, functional characteristics, pin configurations, memory structure, peripheral modules, oscillator configurations, power management, interrupt systems, I/O ports, timer modules, and communication interfaces. This manual is written in Chinese.
Read onlineMICROCHIP PIC18F97J60 specifications
| Flash Memory | 1 Mb |
|---|---|
| Ethernet Buffer | 8 KB |
| A/D Channels | 16 channels |
| Operating Voltage | 2.35V to 3.6V |
| System Clock Range | 2.778 to 41.667 MHz |
| I/O Current (PORTB/C) | 25 mA/25 mA |
All MICROCHIP PIC18F97J60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the flash memory size of the PIC18F97J60?
The device has 1 Mb of Flash memory.
Does the PIC18F97J60 support Ethernet?
Yes, it includes an integrated Ethernet controller and 10Base-T PHY.
What is the operating voltage range of the PIC18F97J60 devices?
The devices operate from 2.35 V up to 3.6 V (3.1 V to 3.6 V when the Ethernet module is used).
What Ethernet features are included in the PIC18F97J60 family?
They include an IEEE 802.3‑compatible controller, an integrated MAC and 10Base‑T PHY, an 8‑Kbyte transmit/receive buffer, and support for one 10Base‑T port with programmable retransmit, padding and CRC generation.
What is the operating voltage range of the device?
The device operates from 2.35 V to 3.6 V, or 3.14 V to 3.45 V when the Ethernet module is used.
From: MICROCHIP ethernet module 64/80/100 pin super 1 Mb flash microcontroller PIC18F97J60 series handbook
How much flash memory is available in the PIC18F97J60 series?
Flash program memory ranges from 64 KB up to 128 KB depending on the specific part.
From: MICROCHIP ethernet module 64/80/100 pin super 1 Mb flash microcontroller PIC18F97J60 series handbook
