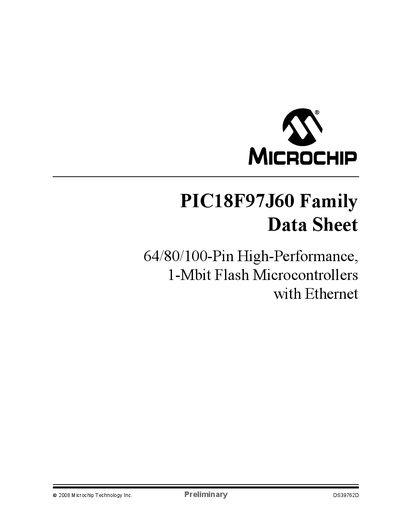

This document is the data sheet of DS39762D PIC18F97J60 series produced by Microchip Technology Inc.
The PIC18F97J60 family consists of 64/80/100‑pin high‑performance microcontrollers featuring up to 128 KB Flash, 3.8 KB SRAM and an integrated Ethernet controller. The devices support a wide range of peripherals including multiple timers, PWM modules, MSSP, EUSART, 10‑bit ADC and hardware multipliers.
The datasheet provides detailed information on oscillator options, power‑managed modes, memory interfaces, electrical characteristics and packaging. It also includes a full table of contents, revision history and contact information for worldwide sales and support.
| Flash Memory Size | 64 KB – 128 KB |
|---|---|
| Operating Voltage Range | 2.35 V to 3.6 V |
| Ethernet Controller | IEEE 802.3 compatible, integrated MAC and 10Base‑T PHY, 8‑Kbyte buffer |
| Maximum I/O Current Sink/Source | 25 mA per pin |
| Watchdog Timer Range | 4 ms to 134 s |
| Hardware Multiplier | 8 × 8 single‑cycle |
The devices operate from 2.35 V up to 3.6 V (3.1 V to 3.6 V when the Ethernet module is used).
They include an IEEE 802.3‑compatible controller, an integrated MAC and 10Base‑T PHY, an 8‑Kbyte transmit/receive buffer, and support for one 10Base‑T port with programmable retransmit, padding and CRC generation.
Flash memory ranges from 64 KB to 128 KB depending on the specific device.
Each I/O pin can sink or source up to 25 mA.
