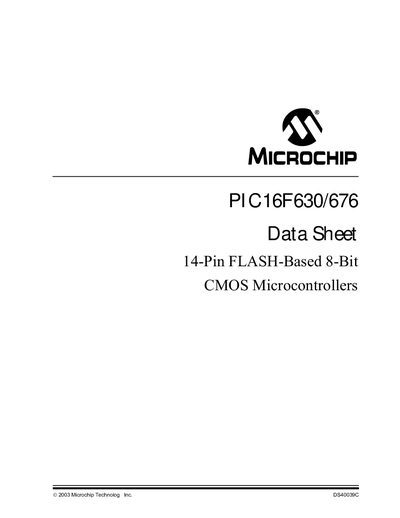

Microchip PIC16F630/676 Datasheet

About this manual

The PIC16F630/676 family are 14‑pin flash‑based 8‑bit CMOS microcontrollers with a high‑performance RISC CPU. They feature a 20 MHz oscillator, single‑cycle instruction execution (except branches), and a range of low‑power modes.

Key peripherals include an internal/external oscillator, 10‑bit 8‑channel ADC (PIC16F676), programmable comparators, multiple I/O pins with pull‑ups, and in‑circuit serial programming (ICSP). The devices support a wide voltage range (2.0 V–5.5 V) and industrial temperature specifications.

What's inside

• Memory Organization
• Ports and I/O
• Timer0 Module
• Timer1 Module with Gate Control
• Comparator Module
• Analog-to-Digital Converter (A/D) Module
• Data EEPROM Memory
• Special Features of the CPU
• Instruction Set Summary
• Electrical Specifications
