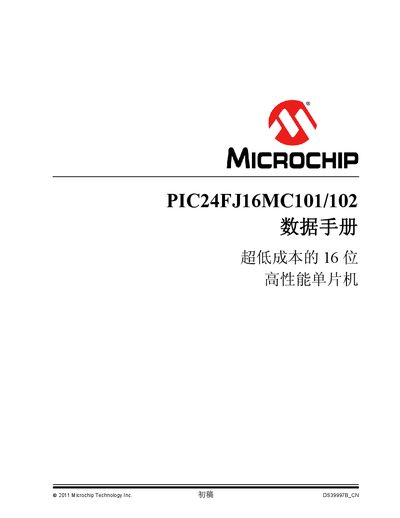

The Microchip PIC24FJ16MC101/102 datasheet provides specifications, features, pin configurations, and electrical characteristics of the 16‑bit…
This document describes the PIC24FJ16MC101/102 16‑bit microcontroller family, highlighting its high‑performance CPU, flash and SRAM memory, motor‑control PWM, ADC, communication peripherals, and power‑saving features. It is intended for designers needing detailed information for hardware design and firmware development.
The datasheet includes a table of contents covering device overview, CPU architecture, memory layout, peripheral modules, electrical characteristics, package options, and revision history, providing all necessary data for selecting and integrating the device into applications. This manual is written in Chinese.
| Maximum operating speed | 16 MIPS (3.0V‑3.6V) |
|---|---|
| Operating temperature range | -40°C to +85°C (industrial) |
| Flash program memory | 16 KB |
| Data SRAM | 1 KB |
| Programmable digital I/O pins | Up to 21 pins |
| Package options | 20‑pin PDIP/SOIC/SSOP, 28‑pin SPDIP/SOIC/SSOP/QFN, 36‑pin TLA |
At 16 MIPS, edge‑aligned mode runs at 488 Hz and center‑aligned mode at 244 Hz for 16‑bit resolution.
The device provides up to three 16‑bit timers, and two of them can be paired to form a 32‑bit timer.
