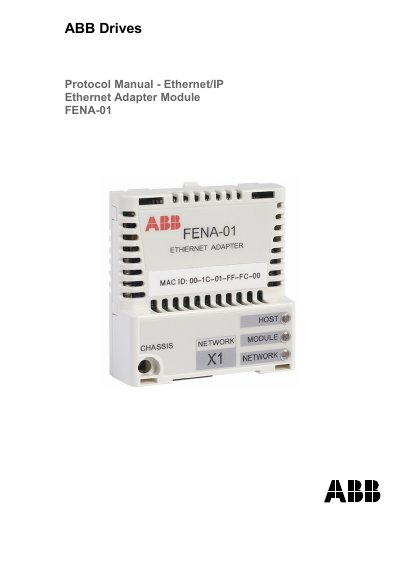

ABB FENA-01 Ethernet Adapter Module EtherNet/IP Protocol Manual

About this manual

This document serves as a protocol manual for the ABB FENA-01 Ethernet Adapter Module, designed to facilitate integration with EtherNet/IP networks. It provides comprehensive instructions on safety, intended audience, and the specific EtherNet/IP implementation for this device. The manual explains how the module acts as a server on the network and realizes the ODVA AC/DC Drive Functional Profile with additional features.

What's inside

• Safety instructions
• Overview
• EtherNet/IP on FENA-01
• Drive configuration
• Client configuration
• Communication profiles
• Assembly objects
• Class objects
• Diagnostics
• Definitions and abbreviations
