Key facts
- Brand
- ABB
- Model
- NETA-01
- Industry
- Industrial
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-03-22
Start here

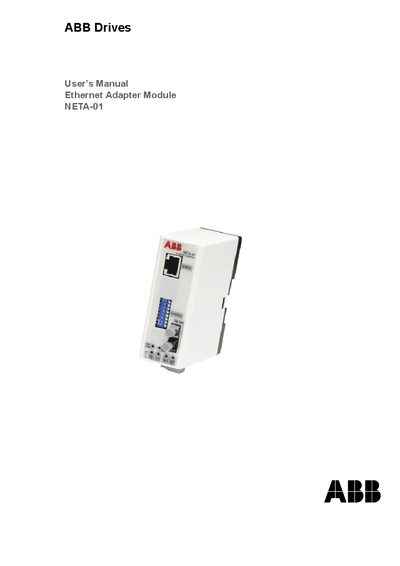

ABB NETA-01 Ethernet Adapter Module User Manual
This manual covers the safety requirements, mechanical and electrical installation, and network setup for the ABB NETA-01 Ethernet Adapter Module. It includes detailed instructions on connecting the module to a drive, configuring IP settings, and using the web‑based user interface.
Additional sections describe quick start procedures, PC requirements, drive configuration, and warranty information, helping qualified personnel safely commission and maintain the adapter in ABB drive systems.
ABB NETA-01 specifications
| Compatible devices | ABB ACS800, ACS600, ACX400, DCS800, DCS600, ACS6000, ACS1000, ACS5000 |
|---|---|
| Loop size | 2 workstations |
| Medium | Fiber optic, core diameter 1 mm |
| Attenuation | 0.31 dB/m |
| Maximum distance between workstations | 10 m |
| Transmission speed | 4 Mbit/s |
| Protocol | Distributed Drive Communication System (DDCS) |
| Operating temperature range | -20 °C to +70 °C |
| Storage temperature range | -55 °C to +85 °C |
All ABB NETA-01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions must be taken before working on the NETA‑01 module?
All electrical installation and maintenance work should be carried out by qualified electricians, the drive must be properly earthed, mains power switched off, and capacitors allowed to discharge for 5 minutes before any work.
How do you configure the IP address for the first time?
Use the "Configuring IP address for the first time" section (page 20) to set the module’s IP parameters.
How many workstations can be connected in a DDCS loop with the NETA-01?
A DDCS loop can connect up to two workstations.
What is the maximum cable length allowed between workstations?
The maximum distance between workstations is 10 meters.
