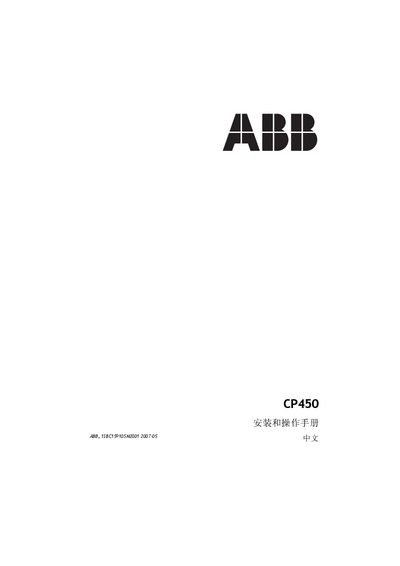

ABB CP450 Installation and Operation Manual
The ABB CP450 is a 10.4‑inch TFT color HMI terminal designed for harsh industrial environments, meeting IP65/NEMA4 waterproof and dust‑proof standards. It includes a CE certification and supports flexible connections to other computers for optimal performance.
This manual provides safety instructions, installation steps, wiring guidelines, and detailed product specifications. Only qualified personnel should install, operate, or service the device, and only ABB‑approved parts and accessories may be used. This manual is written in Chinese.
ABB CP450 specifications
| Display | Color TFT LCD, 256 colors, 640 × 480 pixels |
|---|---|
| Power Supply | 24 V DC ± 15 % (max 30 W) |
| Operating Temperature | 0 °C – +50 °C |
| Dimensions (Front Panel) | 297 mm × 222 mm × 8 mm |
| Weight | 1.9 kg |
All ABB CP450 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What voltage does the CP450 require?
The CP450 requires a 24 V DC power supply, with a tolerance of ±15 % and a maximum power consumption of 30 W.
What type of display does the CP450 have?
It uses a color TFT LCD display with 256 colors and a resolution of 640 × 480 pixels.
What safety precautions must be followed when installing the CP450?
Installation and operation must be performed by qualified personnel, avoid liquids and metal contact, ensure proper grounding, and comply with EMC requirements.
What are the environmental operating limits for the CP450?
The controller operates from 0 °C to +50 °C, can be stored from -10 °C to +60 °C, and works in 20 %–90 % relative humidity.
