30 AWG Stranded, PVC 3849 Series 124 is a round conductor flat cable with a gray PVC insulation. It has a 30 AWG stranded wire on .0333 inch centers and is zippable for branching or discrete termination. The cable has a voltage rating of 300V and is UL listed.

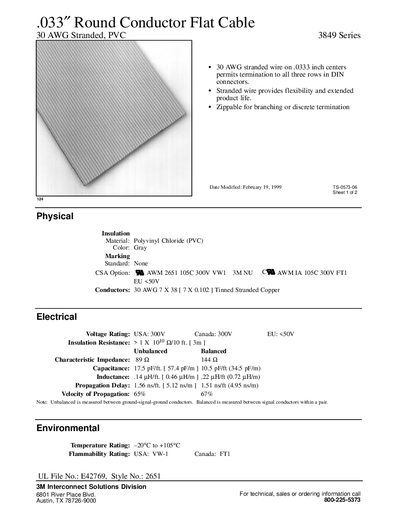

The .033″ round conductor flat cable from 3M’s 3849 Series is a 30 AWG stranded, tinned copper cable with PVC insulation. It is designed for flexible routing and can be terminated to all three rows in DIN connectors.
The sheet lists electrical characteristics such as 300 V rating (USA/Canada), characteristic impedance around 89 Ω, capacitance of 17.5 pF/ft, and a propagation delay of 1.56 ns/ft. Physical data include gray PVC insulation, temperature range –20 °C to +105 °C, and standard roll length of 100 ft. Ordering information and part numbers are also provided.
| Conductor | 30 AWG 7 × 38 (7 × 0.102) tinned stranded copper |
|---|---|
| Insulation material | Polyvinyl Chloride (PVC) |
| Voltage rating | USA/Canada 300 V, EU <50 V |
| Characteristic impedance | ≈ 89 Ω |
| Temperature rating | –20 °C to +105 °C |
It is rated for 300 V in the USA and Canada, and less than 50 V in the EU.
The cable can be used from –20 °C up to +105 °C.
The insulation is made of polyvinyl chloride (PVC).
