Key facts
- Brand
- Yamaha
- Model
- SW500
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-07-03
Start here

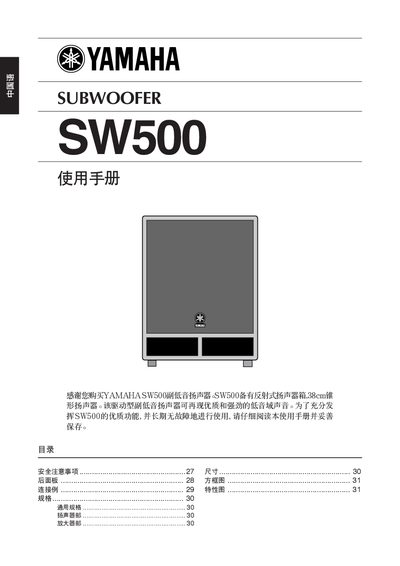

Yamaha SW500 Subwoofer Owner's Manual
This document is the user manual for the Yamaha SW500 active subwoofer. It details the product's features, including its 38cm cone driver and bass-reflex enclosure design, and explains how to operate the various controls on the rear panel such as Level, Cutoff Frequency, and Phase. The guide also covers safety warnings, connection examples for single or dual subwoofer setups, and troubleshooting steps for common issues like the CLIP indicator. This manual is written in Chinese.
Read onlineYamaha SW500 specifications
| Frequency Response | 40-120Hz (-10dB) |
|---|---|
| Maximum Output Level | 122dB |
| Driver Size | 38cm cone |
| Maximum Output Power | 500W |
| Input Sensitivity/Impedance | +4dBu/30k Ohm |
| Cutoff Frequency Control Range | 80-100Hz |
| Dimensions | 480x619x590mm |
All Yamaha SW500 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended spacing for ventilation when placing the subwoofer?
Leave at least 20cm on the sides, 25cm on the back, and 30cm on the top.
What should be done if the CLIP indicator light stays on?
Turn off the power switch, wait about 1 hour for the transformer to cool, and then restart with low input levels.
What is the cutoff frequency range for the SW500?
The cutoff frequency can be selected in the range of 80 to 100Hz.
How should the XLR connector pins be wired?
Pin 1 is Shield (GND), Pin 2 is Hot (+), and Pin 3 is Cold (-).
