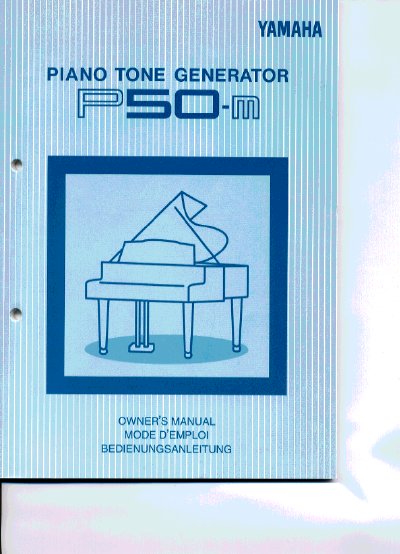

Yamaha P50-m Piano Tone Generator Owner's Manual
The Yamaha P50-m is an advanced tone generator featuring realistic piano voices with complete 32-note polyphony when connected to a MIDI keyboard or sequencer. It includes built-in Reverb and Chorus effects, as well as controls for Brightness, tuning, and touch sensitivity.
This Owner's Manual guides users through unpacking the unit, making connections, powering up, and playing demo songs. It also details how to use voice controls, adjust tone settings via EQ sliders, modify utility functions like MIDI channels, and access advanced features such as the Program Change Table.
Yamaha P50-m specifications
| Speaker Unit | 10 cm full range x 2 |
|---|---|
| Impedance | 6 ohms |
| Frequency Response | 65 Hz — 20 kHz |
| Nominal Input Power | OW |
| Music Input Power | 150W |
| Sensitivity | -90 dB/Aw/m |
| Dimensions | 17-1/8" x 5-1/8" x 8-1/16" |
| Weight | 3.4 kg (7 lbs) |
Source: YAMAHA NS-P50 Manual
All Yamaha P50-m documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum polyphony of the P50-m?
The P50-m provides complete 32-note polyphony when connected to a MIDI keyboard or used with a sequencer.
Can two P50-m units be combined?
Yes, you can combine two P50-m units together using the Receive Mode control for full 64-note polyphony.
What is the NS-P50 package number?
The NS-P50 is the package number which includes the YAMAHA speaker system NS-C50 and NS-E50.
From: YAMAHA NS-P50 Manual
How should I connect the speaker wires?
Connect the red side of the cable to the (+) terminals on both components, and the black side to the (-) terminals.
From: YAMAHA NS-P50 Manual
