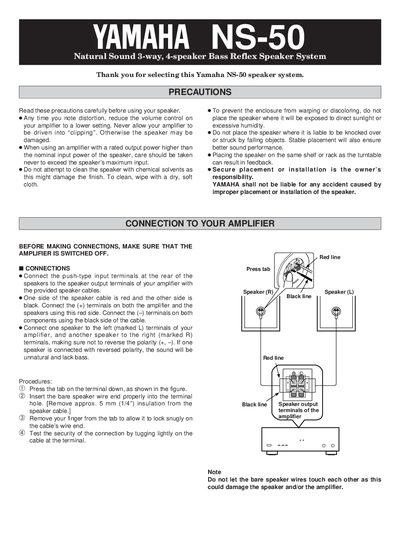

Yamaha NS-50 Speaker System User Manual
This document is the user manual for the Yamaha NS-50, a 3-way, 4-speaker bass reflex speaker system. It covers essential precautions for safe operation, including avoiding amplifier clipping and proper cleaning methods. The guide details how to connect the speakers to an amplifier, ensuring correct polarity and secure terminal connections.
Read onlineYamaha NS-50 specifications
| Midrange | 10 cm (4") semicone |
|---|---|
| Nominal input | 100 W |
| Music input | 200 W |
| Output sound pressure level | 91 dB/t m, 1 W |
| Frequency response | 40 Hz ~ 20,000 Hz |
| Impedance | 6 ohms |
All Yamaha NS-50 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the precautions for cleaning the speaker cabinet?
Avoid using alcohol, benzene, thinner or insecticides. Use a clean, dry cloth instead.
How should I connect the speakers to an amplifier?
Connect the red cord to the right (+) terminal and the black cord to the left (-) terminals of both the amplifier and speaker.
How should I connect the speaker wires to the terminals?
Connect the red side of the cable to the (+) terminals and the black side to the (—) terminals on both the amplifier and speakers.
What happens if I connect a speaker with reversed polarity?
The sound will be unnatural and lack bass.
