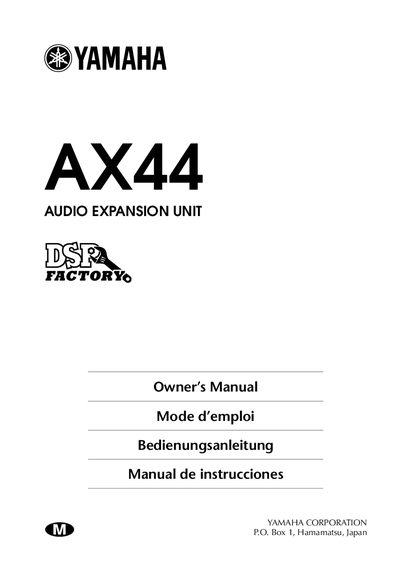

Yamaha AX44 Audio Expansion Unit Owner's Manual
The Yamaha AX44 is an input and output expander designed for the Yamaha DS2416 Digital Mixing Card. It provides four 1/4-inch analog inputs (two with Mic/Line switches) and four 1/4-inch analog outputs, along with a stereo headphone jack. The unit utilizes 20-bit A/D converters and 18-bit D/A converters to provide a typical dynamic range of 100 dB.
Read onlineYamaha AX44 specifications
| Sampling rate range | 30.08 to 50.88 kHz |
|---|---|
| A/D Converter Resolution | 20-bit 128-times oversampling |
| D/A Converter Resolution | 18-bit 8-times oversampling |
| Dynamic range (A/D + D/A) | Typically 100 dB |
| Dimensions | 148 x 183 x 42.6 mm |
| Weight | 1 kg (2.2 lbs) |
