Start here

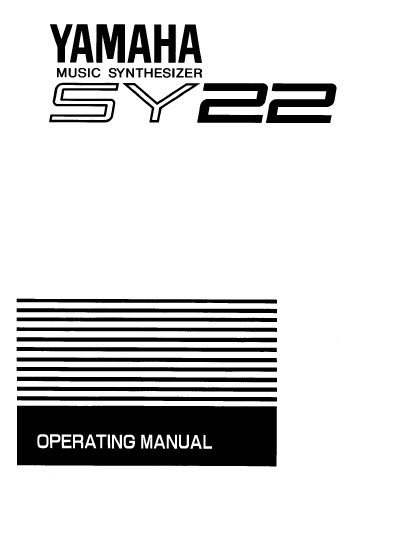

Yamaha SY22 Music Synthesizer Operating Manual
This operating manual provides instructions for the Yamaha SY22 music synthesizer, which combines Yamaha's advanced AWM sample playback technology with high-performance FM tone generation. The device features a 61-key keyboard with velocity and after-touch sensitivity, allowing users to create synthesized sounds using vector control Jets that blend sounds manually in real time or record dynamic vector sweeps.
Read onlineYamaha SY-2 specifications
| Keyboard Range | 37 keys c~cs3 |
|---|---|
| Power Consumption | 20 Watts |
| Power Source | AC, 50/60Hz |
| Width | 90cm (35") |
| Depth | 32cm (12.6") |
| Height without legs | 17cm (6.7") |
All Yamaha SY-2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many preset tones does the SY-2 have?
The synthesizer has 14 preset tone levers which create 28 different tones.
What is the total keyboard range of the SY-2?
The synthesizer has a total range of six octaves (actually seven depending on the preset selected).
How do I power on the SY22?
Turn the main power switch to ON and wait for the display to light up.
What is the purpose of the VECTOR CONTROL key?
It allows manual control of level or detune for 2 or 4 voice elements simultaneously and enables recording of dynamic vectors.
How many keyboards does the CSY-2A have?
The instrument has three keyboards: two upper manuals and one lower pedalboard.
Can I play synthesizer voices on the pedals?
Yes, you can play synthesizer voices on either the upper manual or the pedals.
