Start here

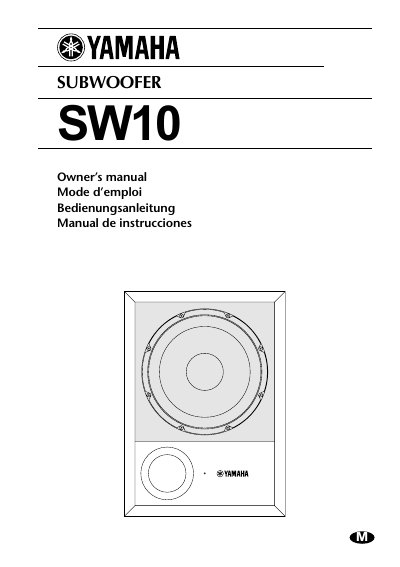

Yamaha SW10 Powered Subwoofer Owner's Manual
The Yamaha SW10 is a powered subwoofer featuring a 25 cm cone speaker in a bass reflex cabinet. It reproduces high-quality low-range sound with controls for volume, cutoff frequency (40-120 Hz), and phase selection (NORM/REV). The unit includes three balanced XLR input jacks and three corresponding output jacks to route signals to main speakers or other subwoofers.
Read onlineYamaha SW10 specifications
| Frequency Range | 25-150 Hz (-10 dB) |
|---|---|
| Speaker Unit | 25 cm Cone (8Q, magnetic shielded) |
| Type | Bass Reflex |
| Maximum Output Power | 180 W at 100 Hz, THD= 1%, RL= 8 |
| Input Sensitivity/Impedance | -6 dB to +4 dB/10 kQ (Input 1, 2, 3) |
| Cutoff Freq Control | 40-120 Hz (Variable) |
All Yamaha SW10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Yamaha SW10 Powered Subwoofer Owner's Manual 22 p
- Yamaha MSP7/MSP5/SW10 STUDIO Powered Monitor Speaker Owner's Manual 16 p
- Yamaha MSP7/MSP5/SW10 STUDIO Powered Monitor Owner's Manual 16 p
- Yamaha MSP7 STUDIO & MSP5 STUDIO Powered Monitor Speakers and SW10 STUDIO Powered Subwoofer Owner's Manual 16 p
- YAMAHA MSP7/MSP5/SW10 Manual
Questions answered in these manuals
What is the frequency range of the SW10?
The frequency range is 25-150 Hz at -10 dB.
How do I adjust the high-cutoff frequency?
Use the CUTOFF FREQ control to adjust the setting in the range of 40Hz through 120Hz.
What type of audio equipment is included in this system?
The system includes powered monitor speakers, a powered subwoofer, and near-field reference monitors.
From: Yamaha MSP7/MSP5/SW10 STUDIO Powered Monitor Speaker Owner's Manual
What is the purpose of this manual?
It explains how to use Yamaha powered monitor speakers or powered subwoofers.
From: Yamaha MSP7/MSP5/SW10 STUDIO Powered Monitor Owner's Manual
Where is the serial number located on the unit?
The serial number can be found on the bottom or rear of the unit.
From: Yamaha MSP7/MSP5/SW10 STUDIO Powered Monitor Owner's Manual
How should the power cord be protected?
Protect the power cord from being walked on or pinched, especially at plugs and where it exits the apparatus.
