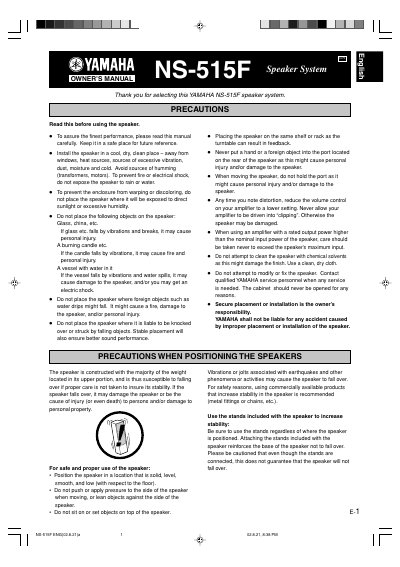

Yamaha NS-515F Speaker System Owner's Manual
This document is the Owner's Manual for the Yamaha NS-515F speaker system. It details safety precautions, including proper placement to prevent tipping and avoiding exposure to moisture or direct sunlight. The manual instructs users on how to attach the included stability stands and how to connect the speakers to an amplifier using standard or bi-wired connections.
Read onlineYamaha NS-5 specifications
| System Type (NS-55) | 3-way 4-speaker bass-reflex speaker system |
|---|---|
| System Type (NS-45) | 2-way 3-speaker bass-reflex speaker system |
| Frequency Response (NS-55) | 40 Hz — 20 kHz (-10 dB) |
| Frequency Response (NS-45) | 43 Hz — 20 kHz (-10 dB) |
| Maximum Input Power (NS-55) | 250W |
| Maximum Input Power (NS-45) | 220W |
| Sensitivity | 90 dB/W-m |
| Dimensions (NS-55) | 264 x 886 x 316 mm |
Source: Yamaha NS-55/NS-45 Home Cinema Main Speaker User Manual
