Start here

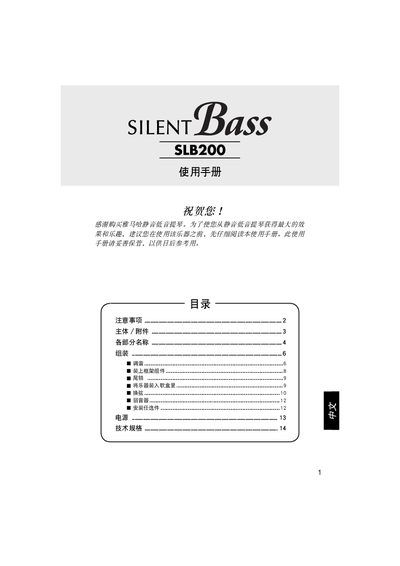

Yamaha SLB200 Silent Double Bass User Manual
The Yamaha SLB200 is a silent electric double bass designed for practice and recording without acoustic sound. This user manual covers essential safety precautions regarding power usage and environmental conditions to prevent damage to the instrument or accessories.
The guide details how to assemble the stand, tune the strings, adjust the bridge height, and operate the built-in controller knobs for volume, treble, and bass. It also explains battery installation using a 6F22 (9V) battery and provides technical specifications including dimensions and materials. This manual is written in Chinese.
Yamaha SLB200 specifications
| Body Material | Spruce, Mahogany |
|---|---|
| Bridge Height | Adjustable |
| Power Source | 6F22(S-006P)/6LR61 9V Battery x1 |
| Overall Dimensions (with stand) | 1692 x 456 x 330 mm |
| Weight | Approx. 7.2 kg |
All Yamaha SLB200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of battery does the Yamaha SLB200 use?
The instrument uses a 6F22 (S-006P) or 6LR61 9V battery.
How do I adjust the bridge height?
Turn the metal screw clockwise to raise the height and counter-clockwise to lower it.
What is the battery life of the SLB200?
The battery life is approximately 350 hours with alkaline batteries and 500 hours with carbon-zinc batteries.
How do I adjust the string height?
Loosen the strings slightly, then turn the metal adjustment screw clockwise to raise the bridge height and counter-clockwise to lower it.
