Key facts
- Brand
- Yamaha
- Model
- C-85
- Category
- amplifier
- Industry
- Appliances
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-02
Start here

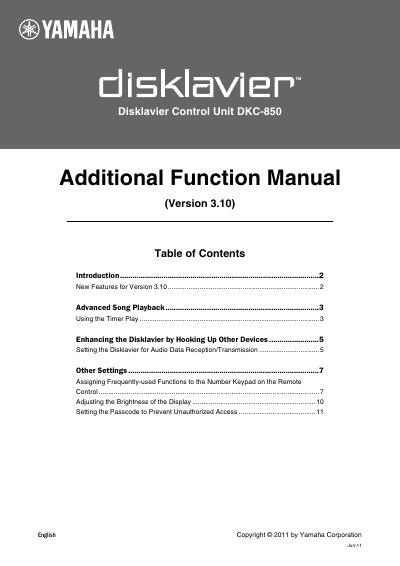

Yamaha Disklavier Control Unit DKC-850 Additional Function Manual v3.10
Version 3.10 of the Disklavier control unit introduces several enhancements to improve performance reliability and user functionality. Key new features include an expansion of timer play settings, enhanced audio input and output options with adjustable offsets for synchronization, a shortcut feature for assigning frequently used functions to the remote keypad, brightness adjustment for the display, and the ability to set a passcode to prevent unauthorized access.
The document provides step-by-step instructions on how to utilize these new features. It covers programming timer play schedules for various days of the week or specific times, adjusting MIDI and audio output offsets to eliminate synchronization delays between video and piano playback, assigning custom functions like 'PLAY', 'RPT', or 'POWER' to number keys, and setting up passcodes along with MAC address registration for authorized remote controllers.
Yamaha C-85 specifications
| Maximum Timer Settings | 99 timer settings |
|---|---|
| MIDI IN Offset Range | -500 ms to 0 ms |
| OUTPUT Offset Range | -100 ms to 0 ms |
Source: Yamaha Disklavier Control Unit DKC-850 Additional Function Manual v3.10
All Yamaha C-85 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the frequency range for the LOW controls?
The LOW controls may be used to boost or cut any frequency in the range of 31.5 Hz to 800 Hz.
What is the frequency range for the HIGH controls?
The HIGH controls may be used to boost or cut any frequency in the range of 0.8 kHz to 20 kHz.
How long does the update process take?
The update process takes approximately 20 minutes.
From: Yamaha Disklavier Control Unit DKC-850 Additional Function Manual v3.10
How long does the Disklavier update process take?
The update process takes approximately 20 minutes.
From: Yamaha Disklavier Control Unit DKC-850 Additional Function Manual v3.10
