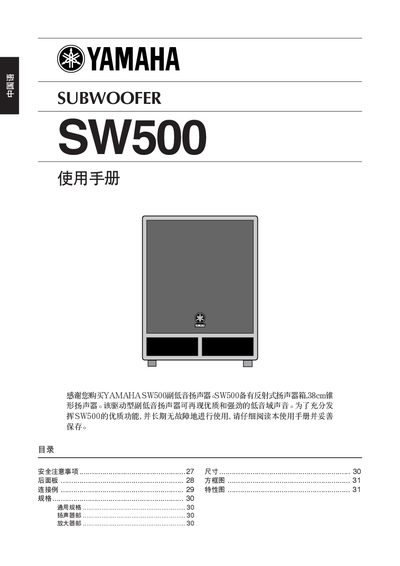

This document describes the features and characteristics of the Yamaha SW500 subwoofer, including a reflex cabinet and a 38 cm (15 inch) cone speaker.
This manual provides instructions for the Yamaha SW500 subwoofer, a bass-reflex driven unit with a 38cm cone speaker. It details safety precautions, rear panel controls including cutoff frequency and phase, and connection examples for single or dual subwoofer setups.
The document includes a block diagram, frequency response characteristics, and technical specifications such as maximum output power, dimensions, and weight. It also lists included accessories like the power cable. This manual is written in Chinese.
| Frequency Response | 40-120Hz (-10dB) |
|---|---|
| Maximum Output Level | 122dB |
| Dimensions | 480X619X590mm |
| Weight | 42.5kg |
| Speaker Diameter | 38cm |
| Maximum Output Power | 500W |
| Power Consumption | 200W |
The cutoff frequency can be selected in the range of 80 to 100Hz.
Pin 1 is Shield (GND), Pin 2 is Hot (+), and Pin 3 is Cold (-).
Lower the input level or the volume to reduce the output level.
