Key facts
- Brand
- Yamaha
- Model
- MX-50
- Category
- amplifier
- Industry
- Appliances
- Documents
- 9
- Languages
- EN · ZH · JA
- Last added
- 2012-07-02
Start here

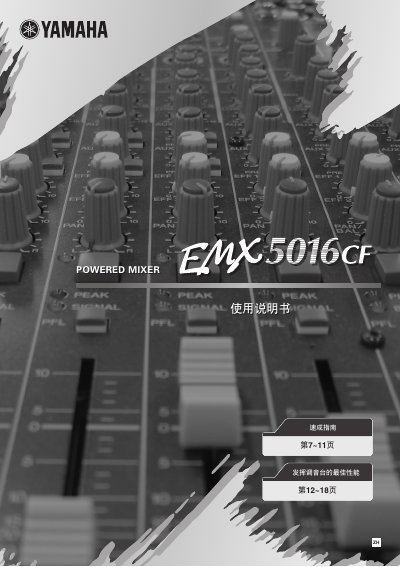

Yamaha EMX5016CF Powered Mixer User Manual
This document is the user manual for the Yamaha EMX5016CF powered mixer. It contains essential safety instructions, including warnings about electric shock, moisture, and proper ventilation, as well as guidelines for connecting power and accessories.
The manual is structured into two main sections: a quick start guide for beginners covering basic operations, and a reference guide for detailed explanations of the mixer's functions, controls, and connections. This manual is written in Chinese.
Yamaha MX-50 specifications
| Minimum RMS Output Power Per Channel (8 ohms) | 125W |
|---|---|
| Minimum RMS Output Power Per Channel (6 ohms) | 150W |
| Minimum RMS Output Power Per Channel (4 ohms) | 290W |
| Minimum RMS Output Power Per Channel (2 ohms) | 390W |
| Signal to Noise Ratio (IHF-A-Network) | 123dB |
| Frequency Response | 10Hz ~ 60kHz |
| Power Consumption | 650W |
| Dimensions (W x H x D) | 435 x 165 x 420mm |
All Yamaha MX-50 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Yamaha MX-50 Stereo Power Amplifier Owner's Manual 9 p
- Yamaha EMX5016CF Powered Mixer User Manual 40 p
- Yamaha EMX5016CF Powered Mixer Owner's Manual 40 p
- Yamaha EMX5014C Powered Mixer Owner's Manual 36 p
- Yamaha EMX5014C Powered Mixer Owner's Manual 36 p
- Yamaha EMX5000-20/EMX5000-12 Powered Mixer Owner's Manual 38 p
- Yamaha EMX5000-20/EMX5000-12 Powered Mixer Owner's Manual 38 p
- Yamaha EMX5016CF Powered Mixer User Manual 40 p
- Yamaha EMX5014C Powered Mixer User Manual 36 p
Questions answered in these manuals
What is the Hyperbolic Conversion Class A Circuit?
It is a circuitry developed by Yamaha that eliminates the drawback of previous Class A amplifiers by allowing pure Class A operation constantly without switching or cut-off.
How do I connect the speaker cords?
Observe the '+' and '-' markings on the backs of the speakers and the MX-50, and insert the stripped ends of the speaker cords into the terminals.
What must be done if the power supply cord is damaged?
You must immediately unplug the unit and have it serviced by qualified Yamaha service personnel.
What is the required voltage for this mixer?
The required voltage is printed on the name plate of the device.
How far must the mixer be from walls if mounted in a rack?
The device must be at least 10 cm away from walls or surfaces.
What is the maximum input level for the AUX1 channel?
The AUX1 input accepts a maximum signal of +6 dB.
