Start here

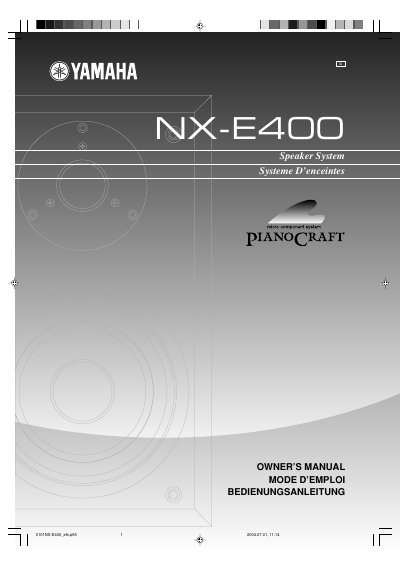

Yamaha NX-E400 Speaker System Owner's Manual
Thank you for selecting this YAMAHA NX-E400 speaker system. This document serves as an Owner's Manual containing precautions, accessory lists, placement guidelines, and connection instructions to ensure safe and optimal performance.
The manual details how to properly place the speakers on a sturdy surface away from heat sources or direct sunlight. It provides step-by-step instructions for connecting the screw-type input terminals to your receiver using the provided speaker cables, including specific guidance for using banana plugs.
Yamaha NX-E400 specifications
| System Type | 2-way bass-reflex speaker system |
|---|---|
| Shielding Type | Magnetic shielding type |
| Woofer Size | 13 cm (5-1/4") cone woofer |
| Tweeter Size | 2.5 cm (1") dome tweeter |
| Crossover Frequency | 3kHz |
| Dimensions | 186 x 300 x 223 mm (7-5/16" x 11-13/16" x 8-13/16") |
| Weight | 4.3 kg 9 Ibs. 8 oz. |
All Yamaha NX-E400 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What accessories are included with the speakers?
The package includes two speaker cables, each 4 meters long.
How should I connect the speaker wires to ensure correct polarity?
Connect the red side of the cable to the (+) terminals and the black side to the (-) terminals on both the receiver and speakers.
What accessories are included with the NX-E400?
The package includes two speaker cables, each 4 meters long.
Can I place the speakers directly on the floor?
No, you should not place them directly on the floor as it may affect bass quality; use a block or sturdy surface instead.
