Yamaha NS-45 Manuals

Key facts

Brand: Yamaha
Model: NS-45
Documents: 2
Languages: EN
Last added: 2012-07-02

Start here

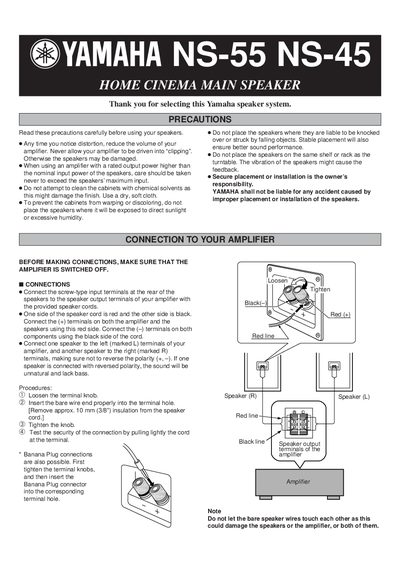

Yamaha NS-55/NS-45 Home Cinema Main Speaker User Manual

User Manual 2 pages · 90 KB · EN

This manual provides instructions for the Yamaha NS-55 and NS-45 home cinema main speakers. It covers safety precautions, connection procedures to an amplifier, and guidelines for optimal speaker placement to ensure good sound quality and stereo imaging.

Read online

Yamaha NS-45 specifications

System Type (NS-55)	3-way 4-speaker bass-reflex speaker system
System Type (NS-45)	2-way 3-speaker bass-reflex speaker system
Frequency Response (NS-55)	40 Hz — 20 kHz (-10 dB)
Frequency Response (NS-45)	43 Hz — 20 kHz (-10 dB)
Maximum Input Power (NS-55)	250W
Maximum Input Power (NS-45)	220W
Sensitivity	90 dB/W-m
Dimensions (NS-55)	264 x 886 x 316 mm

Source: Yamaha NS-55/NS-45 Home Cinema Main Speaker User Manual

All Yamaha NS-45 documents by type

User Manual 2

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

How should I connect the speaker wires?

Connect the red side of the cord to the (+) terminals and the black side to the (-) terminals on both the amplifier and speakers.

From: Yamaha NS-55/NS-45 Home Cinema Main Speaker User Manual

Can I use banana plugs?

Yes, you can use banana plug connectors by first tightening the terminal knobs and then inserting the connector into the terminal hole.
