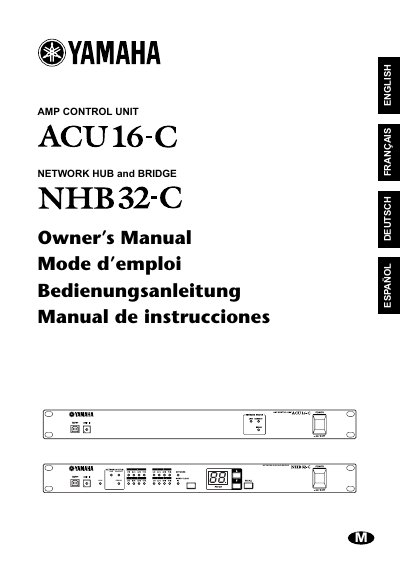

Yamaha ACU16-C/NHB32-C Owner's Manual
This document serves as an addendum and update to the original Owner's Manual for the Yamaha ACU16-C and NHB32-C system. It details changes and corrections resulting from a system software upgrade to version 1.10, specifically regarding CobraNet latency settings and channel distribution limits. The text also corrects previous information concerning cable lengths, system requirements for the NetworkAmp Manager software, and redundancy configurations for primary and secondary ports.
Read onlineYamaha NHB32-C specifications
| Maximum CobraNet channels (8 units) | 256 channels |
|---|---|
| Maximum AES/EBU channels (8 units) | 256 channels |
| Maximum cable length (Ethernet) | 100 m |
| Maximum cable length (Multimode fiber) | 2 km |
| Minimum rack ventilation gap | 1U (4.5cm) |
| Minimum fan airflow | 1.6m³/min |
| Minimum fan static pressure | 5mmH₂O |
All Yamaha NHB32-C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the CobraNet latency options in software v1.10?
The latency setting can now be selected from three choices: 5.33 ms, 2.67 ms, or 1.33 ms.
Can different latency settings be used in the same CobraNet network?
No, all CobraNet devices in a single network must have the same latency setting to communicate correctly.
How many NHB32‑C units can be used on a single CobraNet network?
Up to eight NHB32‑C units can be connected on one CobraNet network.
