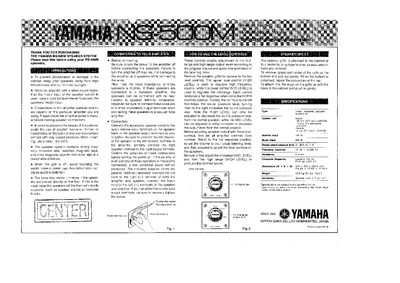

The Yamaha NS-500M is a 3-way bookshelf speaker system featuring acoustic suspension design. It includes a 12-inch woofer, a 4-inch midrange driver, and a 2-inch dome tweeter, with a nominal input of 100W and music input of 200W.
| Midrange | 10 cm (4") semicone |
|---|---|
| Nominal input | 100 W |
| Music input | 200 W |
| Output sound pressure level | 91 dB/t m, 1 W |
| Frequency response | 40 Hz ~ 20,000 Hz |
| Impedance | 6 ohms |
Avoid using alcohol, benzene, thinner or insecticides. Use a clean, dry cloth instead.
Connect the red cord to the right (+) terminal and the black cord to the left (-) terminals of both the amplifier and speaker.
The upper control adjusts high frequency sounds (HIGH LEVEL), while the lower control adjusts midrange output levels (MID LEVEL).
