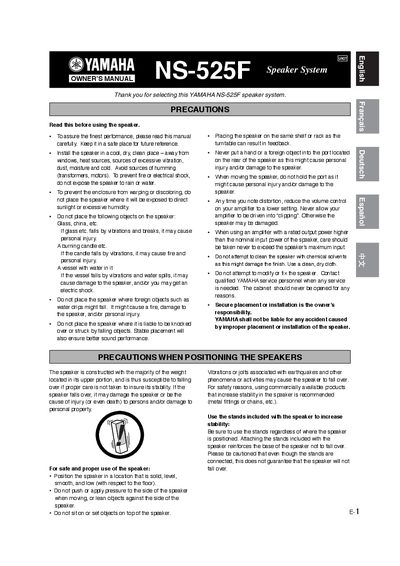

Yamaha NS-525F Speaker System Owner's Manual

This is a manual for the YAMAHA NS-525F speaker system, which contains information on installation, use and maintenance.

Brand: Yamaha
Category: Home Speakers
Document type: User Manual
Language: English
Pages: 5
File format: PDF
File size: 203 KB
Published: 13 June, 2012
Updated: 30 September, 2023
MD5 checksum: CC41796C1CA626845E62588D46D77DEA
PDF: Yamaha NS-525F Speaker System Owner's Manual PDF

About this manual

This document is the Owner's Manual for the Yamaha NS-525F speaker system. It details safety precautions, including proper placement to prevent tipping and avoiding exposure to moisture or direct sunlight. The guide explains how to attach the included stands for stability and describes the procedure for connecting the speakers to an amplifier using both standard and bi-wired configurations.

What's inside

PRECAUTIONS
PRECAUTIONS WHEN POSITIONING THE SPEAKERS
SUPPLIED ACCESSORIES
ATTACHING THE STANDS
CONNECTIONS TO YOUR AMPLIFIER
Bi-wired connections
PLACING THE SPEAKERS
REMOVING THE FRONT COVER
SPECIFICATIONS

Specifications

Driver Configuration	16 cm (6.5") cone woofer x 1, 16 cm (6.5") mid-range x 1, 3m (1) dome tweeter
Frequency Response	35 Hz to 50 kHz (-10dB)
Maximum Input Power	200 W
Sensitivity	89 dB/2.83 Vim
Crossover Frequency	500 Hz/3.8 kHz
Weight	23 kg (50 lbs.11.3 02.)

Frequently asked questions

What happens if I connect a speaker with reversed polarity?

If one speaker is connected with reversed polarity, the sound will be unnatural and lack bass.

What is the maximum input power rating for the NS-525F speaker system?

The maximum input power is 200 W.

How thick should the cushion be when laying the speaker down to attach the stands?

You should use a blanket or cushion with a thickness of 3 cm or more.
