This document provides precautions for operating the Yamaha NS-5 speaker system, including not exceeding the speaker's music input, avoiding amplifier clipping, preventing exposure to sunlight and excessive humidity, avoiding cleaning with chemical solvents, avoiding placement with a turntable to prevent feedback, ensuring stable placement for better sound performance.

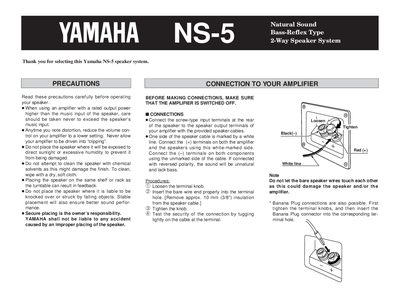

This document is the user manual for the Yamaha NS-5, a 2-way bass-reflex type speaker system. It covers essential precautions for operation, such as avoiding amplifier clipping and protecting the unit from environmental damage. The guide details how to connect the speaker to an amplifier using the provided cables, ensuring correct polarity for optimal sound quality.
| System Type | 2-Way Speaker System |
|---|---|
| Type | Bass-Reflex Type |
| Frequency Response | 55 Hz — 30 kHz (-10 dB) |
| Nominal Input Power | 40W |
| Sensitivity | 90 dB/w/m |
| Dimensions | 206 x 338 x 250 mm |
| Weight | 6.5 kg |
Connect the white-marked side of the cable to the (+) terminals and the unmarked side to the (-) terminals on both the amplifier and speakers.
It is recommended to place the speaker at least 10 cm apart from the wall to prevent obstruction of the rear panel opening.
Yes, the front cover can be removed by holding both sides and pulling straight away from the speaker.
