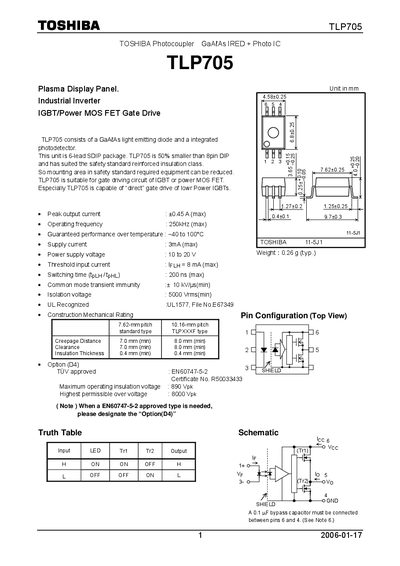

Toshiba TLP705 Photocoupler Datasheet
This document describes the Toshiba TLP705 GaAs photocoupler, a 6‑lead SDIP device used for gate‑driving IGBTs and power MOSFETs. It lists the electrical characteristics, maximum ratings, isolation and switching performance, as well as mechanical dimensions and recommended operating conditions.
The datasheet also includes safety and usage restrictions, noting the device’s UL1577 certification, isolation voltage requirements, and handling precautions for static electricity and GaAs material safety.
Toshiba TLP705 specifications
| Peak output current | 0.45 A (max) |
|---|---|
| Operating frequency | 250 kHz (max) |
| Isolation voltage | 5000 Vrms (min) |
| Supply voltage | 10 to 20 V |
| Supply current | 3 mA (max) |
| Threshold input current | 8 mA (max) |
| Creepage distance | 7.0 mm (min) |
| Clearance | 7.0 mm (min) |
