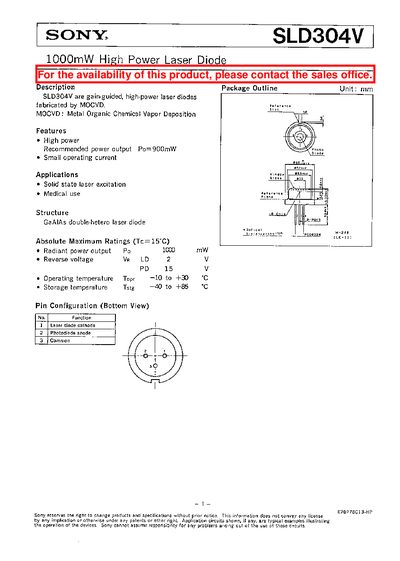

Sony SLD304V Datasheet
The SLD304V is a gain‑guided, high‑power laser diode fabricated by MOCVD. It is intended for solid‑state laser excitation and medical applications. The document lists its key features, maximum ratings, pin configuration, and recommended safety measures.
Detailed optical and electrical parameters are given, including threshold current, operating current and voltage ranges, wavelength options, and radiant power output. Temperature limits for operation and storage, as well as precautionary guidelines for eye protection, are also included.
SONY SLD304V specifications
| Radiant power output (max) | 1000 mW |
|---|---|
| Reverse voltage rating | 2 V |
| Storage temperature range | -40 °C to +8 °C |
| Threshold current (Ith) | 500 mA (min) – 700 mA (max) |
| Operating current (Po=900 mW) | 1550 mA (min) – 2000 mA (max) |
| Operating voltage (Po=900 mW) | 2 V (min) – 30 V (max) |
| Wavelength range | 770 nm – 840 nm |
| Slope efficiency | 0.65 mW/mA – 0.85 mW/mA |
All SONY SLD304V documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended output power for the SLD304V?
The recommended power output is 900 mW.
What is the recommended power output for the SLD304V?
The recommended power output is 900 mW.
What safety equipment is required when using this laser diode?
Eye‑protection goggles that block infrared rays should always be used, and IR scopes or cameras are recommended for monitoring.
