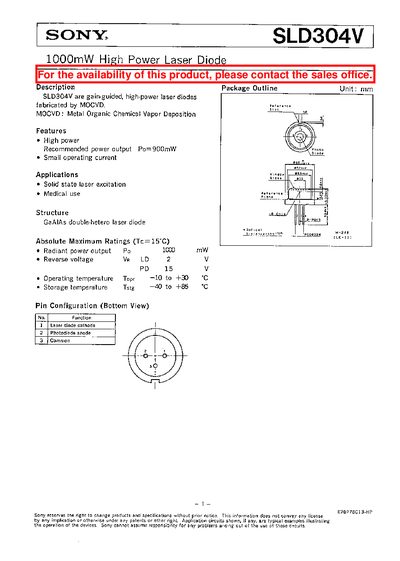

The SLD304V is a gain‑guided, high‑power laser diode fabricated by MOCVD and designed for applications such as solid‑state laser excitation and medical use. The datasheet lists its key features, maximum ratings, pin configuration, and detailed optical and electrical parameters.
Key specifications include a radiant power output up to 1000 mW, a recommended operating output of 900 mW, and operating temperatures from –10 °C to +30 °C. Safety guidelines emphasize the use of eye‑protection goggles and IR monitoring equipment when handling the laser beam.
| Radiant power output (max) | 1000 mW |
|---|---|
| Recommended power output | 900 mW |
| Reverse voltage | 2 V |
| Operating temperature range | -10 to +30 °C |
| Threshold current (Ith) | 500–700 mA |
| Operating current (Po=900mW) | 1550–2000 mA |
| Wavelength (SLD304V‑1) | 785 nm |
The recommended power output is 900 mW.
Eye‑protection goggles that block infrared rays should always be used, and IR scopes or cameras are recommended for monitoring.
The maximum reverse voltage is 2 V.
