Key facts
- Brand
- SONY
- Model
- SR46
- Category
- Digital cameras
- Documents
- 3
- Languages
- ZH · JA
- Last added
- 2012-03-16
Start here

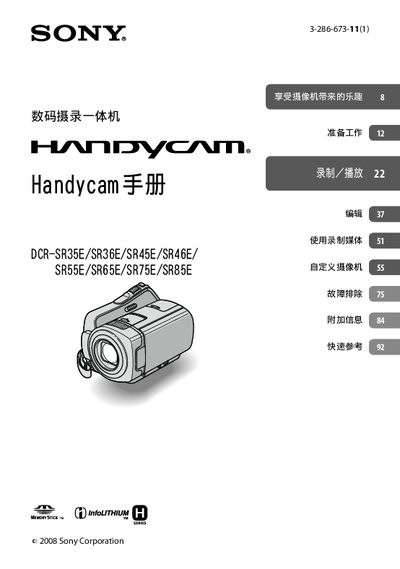

Sony Handycam DCR-SR35E/SR36E/SR45E/SR46E/SR55E/SR65E/SR75E/SR85E User Manual
This manual explains how to operate the Sony Handycam series (models DCR‑SR35E through DCR‑SR85E). It covers safety precautions, power‑on procedures, menu navigation, and how to record and playback video using the built‑in LCD display.
Key sections include memory‑card usage (Memory Stick PRO Duo and PRO‑HG Duo), installation of the camera on a Handycam Station, troubleshooting tips, and maintenance recommendations such as data backup and cleaning. The document also provides quick‑reference tables for button functions and indicator lights. This manual is written in Japanese.
SONY SR46 specifications
| Input/Output Connectors | A/Y 00T video/audio output jack |
|---|---|
| Power Adapter Model | AC‑L200 / L200B |
| Power Consumption | 18 W |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions (approx.) | 48 × 29 × 81 mm (W × H × D) |
| Weight (approx.) | 170 g |
| Battery Max Output Voltage | DC 8.4 V |
| Battery Capacity | 4.9 Ah (880 mAh) |
All SONY SR46 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I charge the battery?
Connect the AC adapter to the camcorder’s DC IN jack and rotate the POWER switch to OFF (CHG); the CHG indicator will light while charging and turn off when the battery is full.
What memory cards can be used?
The camcorder supports Memory Stick PRO Duo cards up to 8 GB; both the standard PRO Duo and PRO‑HG Duo formats are accepted.
Is the camera waterproof?
No, the camera is not waterproof or water‑resistant.
From: Sony Handycam DCR-SR35E/SR36E/SR45E/SR46E/SR55E/SR65E/SR75E/SR85E User Manual
What should be done before removing the battery or power adapter?
Turn the POWER switch to the OFF (0) position before removing the battery or disconnecting the AC adapter.
From: Sony Handycam DCR-SR35E/SR36E/SR45E/SR46E/SR55E/SR65E/SR75E/SR85E User Manual
How should the Handycam be connected to the Handycam Station?
Connect the power cable to the Handycam Station, insert the connector in the correct direction, and do not connect both the camera and the station at the same time.
