Key facts
- Brand
- SONY
- Model
- SR65
- Category
- Digital cameras
- Documents
- 5
- Languages
- ZH · JA
- Last added
- 2012-03-24
Start here

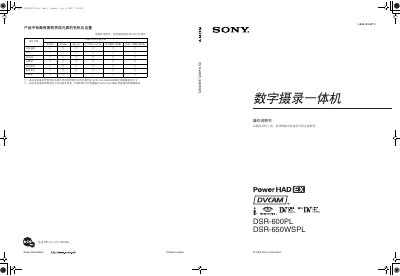

Sony DSR-600PL/DSR-650WSPL Digital Video Camera User Manual
This manual provides detailed instructions for the Sony DSR-600PL and DSR-650WSPL digital video cameras, covering installation, basic operation, connection interfaces, and maintenance procedures. It includes safety warnings, component descriptions, and troubleshooting tips.
The document also describes camera specifications such as CCD size, LCD monitor, gain settings, and supported video formats, as well as how to use scene files, user menus, and external accessories like UHF links and lighting units. This manual is written in Chinese.
SONY SR65 specifications
| Input/Output Connectors | A/Y 00T video/audio output jack |
|---|---|
| Power Adapter Model | AC‑L200 / L200B |
| Power Consumption | 18 W |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions (approx.) | 48 × 29 × 81 mm (W × H × D) |
| Weight (approx.) | 170 g |
| Battery Max Output Voltage | DC 8.4 V |
| Battery Capacity | 4.9 Ah (880 mAh) |
All SONY SR65 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Sony DSR-600PL/DSR-650WSPL Digital Video Camera User Manual 139 p
- Sony DCR-SR35E/DCR-SR36E/DCR-SR45E/DCR-SR46E/DCR-SR55E/DCR-SR65E/DCR-SR75E/DCR-SR85E Operating Instructions 32 p
- Sony Handycam DCR-SR35E/SR36E/SR45E/SR46E/SR55E/SR65E/SR75E/SR85E User Manual 103 p
- Sony DCR-SR45/SR46/SR65/SR85 Handycam User Manual 103 p
- Sony DSR-600PL / DSR-650WSPL User Manual 12 p
Questions answered in these manuals
How do I install the camera on a tripod?
Use the supplied triangular mounting bracket and follow the “install on a tripod” instructions shown in the manual.
From: Sony DSR-600PL/DSR-650WSPL Digital Video Camera User Manual
What type of LCD screen does the camera have?
It includes a 2.5‑inch color LCD monitor that can be tilted for easier viewing.
From: Sony DSR-600PL/DSR-650WSPL Digital Video Camera User Manual
How do I charge the battery?
Connect the AC adapter to the camcorder’s DC IN jack and rotate the POWER switch to OFF (CHG); the CHG indicator will light while charging and turn off when the battery is full.
What memory cards can be used?
The camcorder supports Memory Stick PRO Duo cards up to 8 GB; both the standard PRO Duo and PRO‑HG Duo formats are accepted.
Is the camera waterproof?
No, the camera is not waterproof or water‑resistant.
From: Sony Handycam DCR-SR35E/SR36E/SR45E/SR46E/SR55E/SR65E/SR75E/SR85E User Manual
What should be done before removing the battery or power adapter?
Turn the POWER switch to the OFF (0) position before removing the battery or disconnecting the AC adapter.
From: Sony Handycam DCR-SR35E/SR36E/SR45E/SR46E/SR55E/SR65E/SR75E/SR85E User Manual
