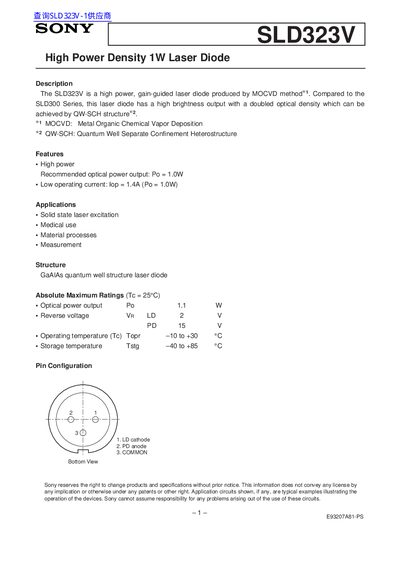

Sony SLD323V Laser Diode Datasheet
The SLD323V is a high‑power, gain‑guided laser diode from Sony, offering a recommended optical output of 1 W with low operating current (1.4 A). It is designed for solid‑state laser excitation, medical use, material processing and measurement applications.
The datasheet lists absolute maximum ratings, pin configuration, detailed electrical and optical characteristics, wavelength options, and package dimensions. Safety guidelines recommend infrared‑blocking goggles and optional IR monitoring equipment when handling the device.
SONY SLD323V specifications
| Recommended optical power output | 1.0 W |
|---|---|
| Maximum optical power output | 1.1 W |
| Reverse voltage (VRLD) | 2 V |
| Operating temperature range | -10 °C to +30 °C |
| Storage temperature range | -40 °C to +85 °C |
| Low operating current (Iop) | 1.4 A |
All SONY SLD323V documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended operating current for the SLD323V?
The recommended operating current is 1.4 A to achieve the 1 W optical output.
What safety equipment should be used when handling the SLD323V laser diode?
Safety goggles that block infrared rays should always be used, and IR scopes, cameras, or fluorescent plates are recommended for monitoring.
What is the recommended optical power output of the Sony SLD323V?
The recommended optical power output is 1.0 W.
What is the threshold current of the SLD323V at 25 °C?
The threshold current (Ith) ranges from 0.3 A to 0.5 A.
