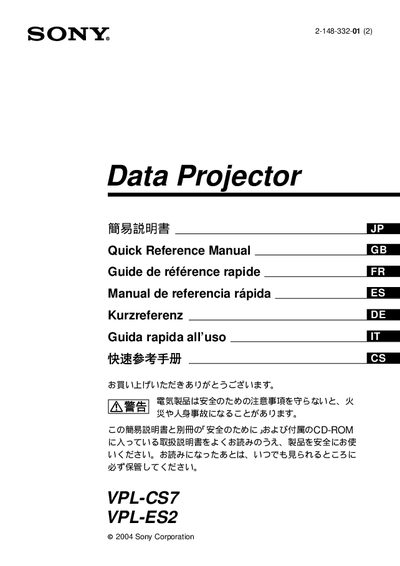

Sony VPL-CS7/ES2 Quick Reference Manual
The manual gives a brief overview of how to set up the projector, including safety precautions, power‑connection guidelines, and basic image‑projection steps. It also points users to the full operating manual on the included CD‑ROM for detailed instructions.
Additional sections cover adjusting picture settings, powering the unit on and off, and replacing the lamp safely. Contact information for Sony technical support and environmental recycling notes are provided at the end of the document. This manual is written in Japanese.
SONY ES2 specifications
| Supported audio file format | MP3 Bit rate: 8‑320 kbps; Sampling frequencies: 24/22.05/16/12/11.025/8/32/44.1/48 kHz |
|---|---|
| Frequency response | 20 Hz – 20 kHz |
| Output | Headphones: Stereo mini‑jack |
| Operating temperature | -5 °C – 35 °C (41 °F – 95 °F) |
| Power source | One LRO3 (size AAA) alkaline battery, 5 VDC |
| Mass | Approx. 50 g (1.8 oz) including battery |
Source: Sony AZ-ES1/ES128/ES256 Portable USB Memory Player Operating Instructions
All SONY ES2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What type of battery does the player use?
It uses one LRO3 (size AAA) alkaline battery.
From: Sony AZ-ES1/ES128/ES256 Portable USB Memory Player Operating Instructions
What audio formats are supported?
The player supports MP3 files with bit rates from 8 to 320 kbps and sampling frequencies ranging from 8 kHz to 48 kHz.
From: Sony AZ-ES1/ES128/ES256 Portable USB Memory Player Operating Instructions
How do I replace the lamp?
Turn off the projector and unplug the power cord, wait until the lamp cools, then use the removal handle to pull the lamp out and replace it with the correct model.
What video and audio cables are required?
Use the supplied HD D‑sub 15‑pin video cable and, if needed, a stereo audio cable (sold separately) without resistors.
