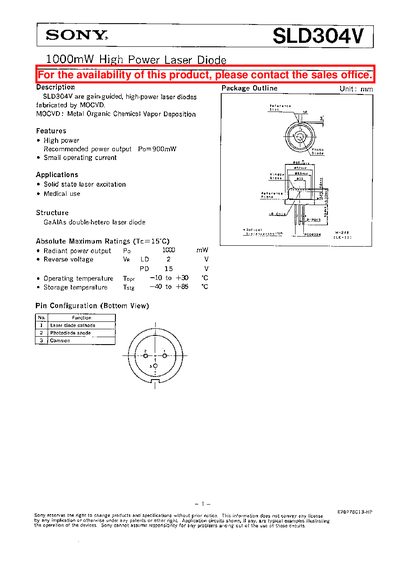

The Sony SLD304V is a gain‑guided, high‑power laser diode fabricated by MOCVD. It is intended for solid‑state laser excitation and medical applications. The document lists its features, recommended output power, and typical applications.
Detailed optical and electrical parameters are given, including radiant power, threshold current, wavelength range, and temperature characteristics. Safety precautions such as eye protection and the use of infrared‑blocking goggles are also described.
| Radiant power output (max) | 1000 mW |
|---|---|
| Reverse voltage rating | 2 V |
| Storage temperature range | -40 °C to +8 °C |
| Threshold current (Ith) | 500 mA (min) – 700 mA (max) |
| Operating current (Po=900 mW) | 1550 mA (min) – 2000 mA (max) |
| Operating voltage (Po=900 mW) | 2 V (min) – 30 V (max) |
| Wavelength range | 770 nm – 840 nm |
| Slope efficiency | 0.65 mW/mA – 0.85 mW/mA |
The recommended power output is 900 mW.
