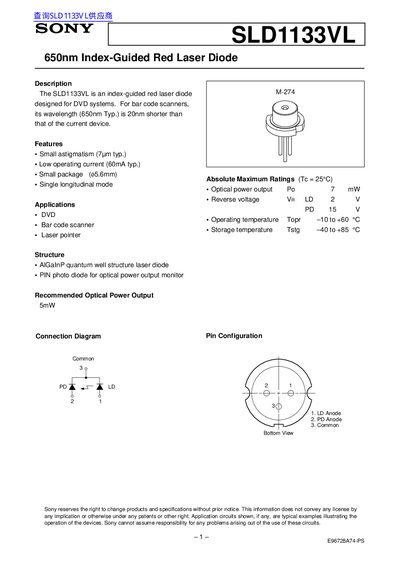

SONY SLD1133VL 650nm Index-Guided Red Laser Diode Manual
The SLD1133VL is an index‑guided red laser diode designed for DVD systems and barcode scanners, emitting at a typical wavelength of 650 nm. The manual describes its features, such as low operating current, small package size, and single longitudinal mode operation.
Key specifications, including threshold current, operating voltage, and optical power output, are listed along with a connection diagram and handling precautions. Safety guidelines cover eye protection, surge current prevention, and electro‑static discharge protection.
SONY SLD1133VL specifications
| Threshold current Ith (typical) | 65 mA |
|---|---|
| Operating current (typical) | 60 mA |
| Operating voltage (typical) | 2.3 V |
| Recommended optical power output | 5 mW |
| Operating temperature range | -10 °C to +60 °C |
Source: SONY SLD1133VL 650nm Index-Guided Red Laser Diode Manual
All SONY SLD1133VL documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended optical power output for the SLD1133VL?
The recommended optical power output is 5 mW.
From: SONY SLD1133VL 650nm Index-Guided Red Laser Diode Manual
What is the operating temperature range of the SLD1133VL?
The diode operates from –10 °C to +60 °C.
From: SONY SLD1133VL 650nm Index-Guided Red Laser Diode Manual
