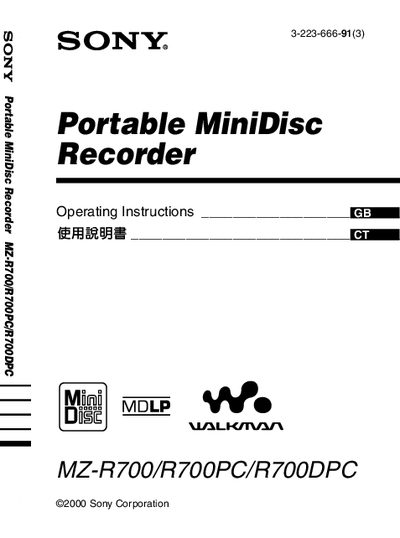

Sony MZ-R700 / R700PC / R700DPC Portable MiniDisc Recorder Operating Instructions
This manual covers safety precautions for the Sony MZ‑R700 series portable MiniDisc recorder, including warnings against exposure to rain, moisture, and opening the cabinet. It also outlines liability statements and regulatory information such as CE marking.
The guide explains the layout of controls, how to record and play MiniDiscs, use of the remote control, battery operation, and troubleshooting. Detailed descriptions of buttons, display indicators, and connection ports are provided to help users operate the device effectively.
SONY MZ-R70 specifications
| Frequency response | 20 to 20,000 Hz + 3 dB |
|---|---|
| Wow and flutter | Below measurable limit |
| Microphone input level | 0.35‑1.38 mV (stereo mini‑jack) |
| Line‑in input level | 69‑194 mV (stereo mini‑jack) |
| Optical digital input | Optical (digital) mini‑jack |
| Audio output level | 5 mW + 5 mW into 16 Ω (stereo mini‑jack) |
| Dimensions | ≈ 81 × 74 × 26.2 mm (W × H × D) |
| Mass (recorder only) | ≈ 115 g |
| Laser diode wavelength | 790 nm |
| Laser output power | < 44.6 µW (measured at 200 mm) |
| Power requirements (US model) | 120 V AC 60 Hz |
| Power requirements (UK/HK model) | 230‑240 V AC 50/60 Hz |
| Battery type (rechargeable) | Nickel‑cadmium (NC‑WMAA) |
| Maximum recording time (MDW‑80 stereo) | 80 minutes |
| Maximum recording time (MDW‑80 monaural) | 160 minutes |
| Maximum recording time (MDW‑74 stereo) | 74 minutes |
| Maximum recording time (MDW‑74 monaural) | 148 minutes |
