Start here

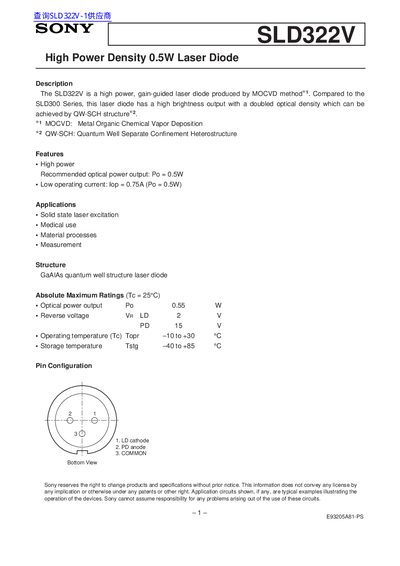

SONY SLD3022V High Power Density 0.5W Laser Diode handbook (1)
The SLD322V is a high‑power, gain‑guided laser diode produced by MOCVD method. It delivers a recommended optical output of 0.5 W with a low operating current of 0.75 A and is suitable for solid‑state laser excitation, medical use, material processing, and measurement applications.
The document lists absolute maximum ratings, electrical and optical parameters, pin configuration, and safety guidelines. Detailed graphs show temperature and wavelength dependence, as well as far‑field patterns and spectral power distribution.
SONY SLD3022V specifications
| Recommended optical power output | 0.5 W |
|---|---|
| Optical power output (max rating) | 0.55 W |
| Operating voltage (typical) | 2.1 V – 3.0 V |
| Wavelength range | 790 nm – 840 nm |
Source: SONY SLD3022V High Power Density 0.5W Laser Diode handbook (1)
All SONY SLD3022V documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended optical power output of the SLD322V?
The recommended optical power output is 0.5 W.
From: SONY SLD3022V High Power Density 0.5W Laser Diode handbook (1)
What is the typical threshold current of the SLD322V?
The threshold current is typically 0.3 A (minimum 0.18 A).
From: SONY SLD3022V High Power Density 0.5W Laser Diode handbook (1)
What is the recommended optical power output of the SLD322V?
The recommended optical power output is 0.5 W.
From: SONY SLD3022V High Power Density 0.5W Laser Diode handbook
What operating current is required for a 0.5 W output?
An operating current of 0.75 A is required for a 0.5 W output.
From: SONY SLD3022V High Power Density 0.5W Laser Diode handbook
