Key facts
- Brand
- SONY
- Model
- TA-A1ES
- Category
- Audio Power Amplifier
- Industry
- Electronics
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2026-10-06
Start here

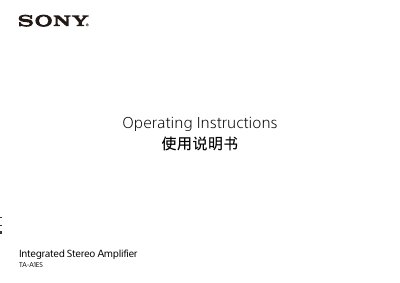

Sony TA-A1ES Integrated Stereo Amplifier Operating Instructions
This manual covers safety precautions, main features, and the layout of the front and rear panels of the TA‑A1ES integrated stereo amplifier. It explains how to connect speakers and audio equipment, adjust volume, select input sources, and use the remote control.
Additional sections describe headphone impedance settings, the auto‑standby function, troubleshooting tips, and detailed specifications such as power output, frequency response, and power consumption.
Sony TA-A1ES specifications
| Rated Power Output | 60 W + 60 W per channel |
|---|---|
| Frequency response | 20 Hz – 20 kHz |
| Total harmonic distortion | 0.15 % (8 Ω) |
| Supported speaker impedance | 4 Ω or higher |
| Power consumption | 300 W (operating), 0.4 W (standby) |
| Dimensions (approx.) | 430 mm × 130 mm × 420 mm |
| Mass (approx.) | 17.0 kg |
| Input sensitivity (unbalanced) | 150 mV |
| Signal‑to‑noise ratio | 96 dB |
| Headphone impedance modes | LOW 8‑50 Ω, MID 50‑300 Ω, HI ≥300 Ω |
Source: Sony TA-A1ES Integrated Stereo Amplifier Operating Instructions
All Sony TA-A1ES documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How is the auto‑standby function activated?
Set the AUTO STANDBY switch to ON; the amplifier will automatically enter standby after about 10–15 minutes of no audio output.
From: Sony TA-A1ES Integrated Stereo Amplifier Operating Instructions
What is the rated power output of the TA‑A1ES?
The amplifier delivers a rated output of 60 W per channel into an 8 Ω load from 20 Hz to 20 kHz.
From: Sony TA-A1ES Integrated Stereo Amplifier Operating Instructions
How does the auto‑standby function work?
Set the AUTO STANDBY switch to ON; if no audio is output for about 10–15 minutes, the amplifier automatically switches to standby mode.
What is the rated output power of the amplifier?
The amplifier delivers 80 W per channel (80 W + 80 W) over 20 Hz–20 kHz with 0.15 % THD into an 8 Ω load.
