Key facts
- Brand
- Samsung
- Model
- S3C2410X
- Industry
- Industrial
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-04-01
Start here

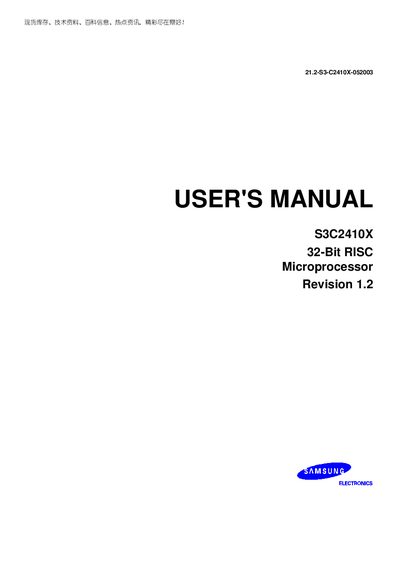

Samsung S3C2410X 32-Bit RISC Microprocessor User Manual
This manual introduces the Samsung S3C2410X 32‑Bit RISC microprocessor, covering its features, block diagram, pin assignments, and signal descriptions. It also includes a product overview and special register information.
Subsequent chapters describe the programmer's model, ARM instruction set, and THUMB instruction set in detail, with syntax, examples, and cycle times. The document ends with a mask option selection form for product configuration.
Samsung S3C2410X specifications
| Processor type | 32‑Bit RISC |
|---|---|
| Revision | 1.2 |
| Publication Number | 21.2‑S3‑C2410X‑052003 |
Source: Samsung S3C2410X 32-Bit RISC Microprocessor User Manual
All Samsung S3C2410X documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What revision is this manual?
The manual is Revision 1.2.
From: Samsung S3C2410X 32-Bit RISC Microprocessor User Manual
What is the publication number of this manual?
The publication number is 21.2‑S3‑C2410X‑052003.
From: Samsung S3C2410X 32-Bit RISC Microprocessor User Manual
What is the publication number of this manual?
The publication number is 21.2‑S3‑C2410X‑052003.
From: Samsung S3C2410X 32‑Bit RISC Microprocessor User Manual
Does Samsung provide a warranty for the S3C2410X microprocessor?
Samsung makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose.
From: Samsung S3C2410X 32‑Bit RISC Microprocessor User Manual
What is the maximum operating frequency of the S3C2410X?
The processor can run up to 203 MHz.
From: Samsung S3C2410X 32‑Bit RISC Microprocessor User Manual
How many UART ports does the S3C2410X provide?
It includes three UART channels.
From: Samsung S3C2410X 32‑Bit RISC Microprocessor User Manual
