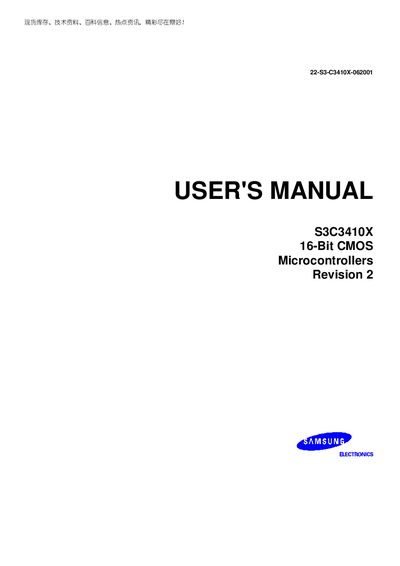

Samsung S3C3410X User Manual
This manual describes Samsung's S3C3410X 16/32-bit RISC microcontroller, a cost‑effective solution for PDA and general‑purpose applications. It includes an overview of the integrated peripherals such as DMA controller, UART, ADC, timers, real‑time clock, and power‑management features.
Revision 2 of the document adds corrected pin descriptions, updated timing diagrams, cache disable operation details, and changes to several control registers. The manual also contains mechanical data for the 128‑pin QFP package and a block diagram of the processor architecture.
Samsung S3C3410X specifications
| Operating Voltage Range | 30V to 36V |
|---|---|
| Temperature Range | 0° to 70°C |
| Maximum Operating Frequency | up to 40 MHz |
| Package Type | 128‑pin QFP |
| ADC Resolution | 10‑bit |
| I/O Ports | 74 total I/O ports |
| Interrupt Sources | 35 sources |
Source: Samsung S3C3410X User Manual
All Samsung S3C3410X documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating voltage range of the S3C3410X?
The S3C3410X operates from 30 V to 36 V.
How many I/O ports does the S3C3410X provide?
It provides a total of 74 I/O ports.
What is the package type of the S3C3410X?
The S3C3410X is available in a 128‑pin QFP package.
How many interrupt sources does the S3C3410X support?
It supports 35 interrupt sources.
