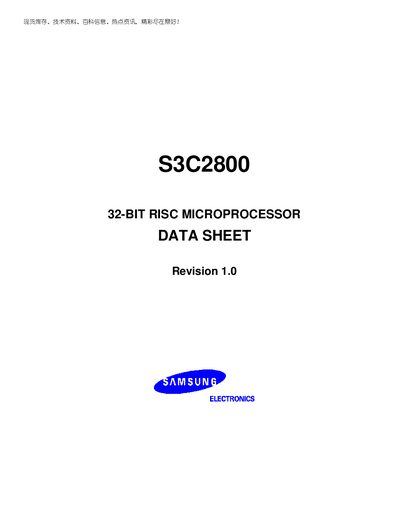

Samsung S3C2800 Datasheet
The S3C2800 is a 32‑bit RISC microcontroller based on an ARM920T core, designed for cost‑effective, high‑performance applications. It integrates on‑chip peripherals such as caches, UARTs, DMA channels, timers, GPIO, RTC, I2C, PCI bus and a PLL clock generator.
The document includes an overview, detailed feature list, block diagram, pin diagram and assignments, electrical characteristics, and mechanical data such as package dimensions for the 208‑pin LQFP package.
Samsung S3C2800 specifications
| Maximum operating frequency | 200 MHz |
|---|---|
| Core voltage | 1.8 V (‑0.1 V/+0.15 V) |
| I/O voltage | 3.3 V |
| Cache size | 16 KB instruction cache, 16 KB data cache |
| DMA channels | 4‑channel general‑purpose DMA |
| Timer units | 3‑channel 16‑bit timers |
| Watchdog timer | 16‑bit |
| GPIO ports | 44 general‑purpose ports |
| PCI bus interface | 32‑bit, up to 66 MHz |
| Package type | 208‑pin LQFP |
Source: Samsung S3C2800 Datasheet
All Samsung S3C2800 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock speed of the S3C2800?
The microcontroller can run up to 200 MHz.
How many GPIO ports are available on the S3C2800?
The device provides 44 general‑purpose GPIO ports.
What is the maximum operating frequency of the S3C2800?
The microcontroller can run up to 200 MHz.
How many UART channels are integrated in the S3C2800?
It includes a 2‑channel UART with handshake and FIFO support.
