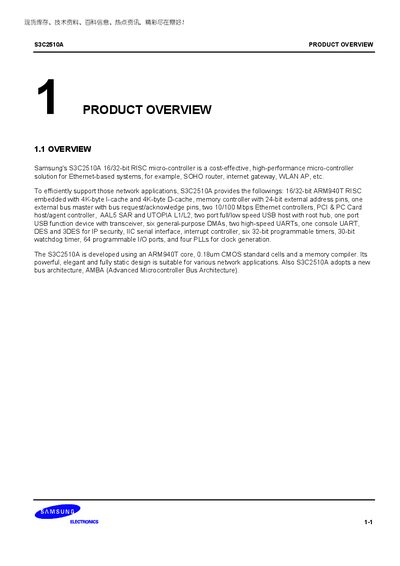

Samsung S3C2510A User Manual
The S3C2510A is a 16/32‑bit ARM940T RISC micro‑controller designed for Ethernet‑based systems such as SOHO routers, internet gateways and WLAN APs. It integrates two 10/100 Mbps Ethernet controllers, USB host/device controllers, multiple UARTs, DMA channels and a range of peripheral interfaces.
This manual describes the product overview, key features, block diagram, PCI/PC Card host‑agent controller, AALS SAR and UTOPIA interfaces, USB host and function devices, UARTs, DES/3DES accelerator, DMA channels, pin assignments and electrical specifications.
Samsung S3C2510A specifications
| CPU Operating Frequency | Up to 166 MHz |
|---|---|
| AHB Bus Operating Frequency | Up to 133 MHz |
| Package Type | 416 PBGA |
| Core Operating Voltage | 1.8 V (+5 %, -40~85 °C) |
| I/O Operating Voltage | 3.3 V (+5 %, -40~85 °C) |
| Ethernet Controllers | Two 10/100 Mbps controllers |
| USB Host Ports | 2‑port full/low‑speed host with root hub |
| USB Function Ports | 1 full‑speed device port |
| UARTs | Two high‑speed UARTs + one console UART |
| General DMA Channels | Six |
| Programmable Timers | Six 32‑bit timers |
| Watchdog Timer | 30‑bit |
| Programmable I/O Ports | 64 ports |
| PLL Count | Four PLLs |
Source: Samsung S3C2510A User Manual
