S3C2410X is an integrated solution for handheld devices and general embedded systems, including 32/16-bit architecture and ARM920T CPU core powerful instruction set, enhanced ARM MMU architecture supports WinCE, EPOC 32 and Linux operating systems, instruction cache, data cache, on-chip clock generator, external memory control, LCD controller, PWM timer, watchdog timer, 117-bit general-purpose I/O port/24 external interrupt sources and other characteristics.

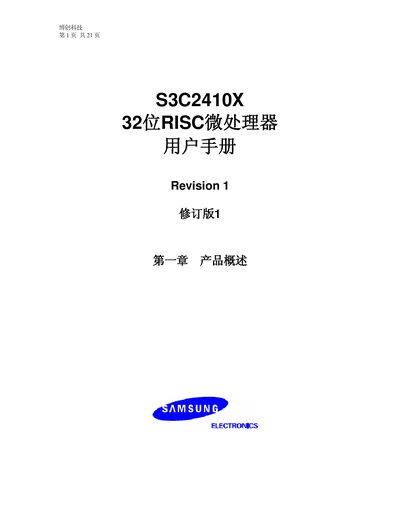

The manual provides a comprehensive overview of the Samsung S3C2410X 16/32‑bit RISC microprocessor, describing its architecture, core features, and intended applications such as low‑cost, low‑power handheld devices. It details the integrated peripherals, memory interfaces, and power‑management options.
Additional sections include a block diagram, pin‑assignment tables for the 272‑pin FBGA package, and extensive specifications of the CPU core, caches, timers, UARTs, DMA channels, and other on‑chip modules. This manual is written in Chinese.
| CPU core | ARM920T |
|---|---|
| Maximum operating frequency | 203 MHz |
| Instruction cache size | 16 KB |
| Data cache size | 16 KB |
| Package type | 272‑FBGA |
| UART channels | 3 |
| DMA channels | 4 |
| Interrupt sources | 55 |
The processor can run up to 203 MHz.
It includes three UART channels.
The chip is supplied in a 272‑pin FBGA package.
