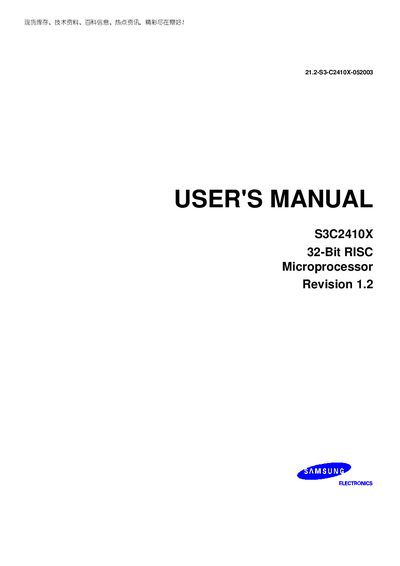

This document is the user manual for the S3C2410X 32-bit RISC microprocessor, providing technical information and features of the product.
This manual introduces the Samsung S3C2410X 32‑Bit RISC microprocessor, covering its features, block diagram, pin assignments, signal descriptions, and special registers. It also includes a product overview and revision information.
Subsequent chapters describe the programmer's model, the ARM instruction set, the THUMB instruction set, and a mask‑option selection form for configuring the device. The document ends with a form for ordering and application information.
| Processor Architecture | ARM |
|---|---|
| Processor Type | 32‑Bit RISC |
| Revision | 1.2 |
The publication number is 21.2‑S3‑C2410X‑052003.
Samsung makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose.
Samsung Electronics can be contacted at C.P.O. Box #37, Suwon 449‑900, Korea; Tel: (82)-(031)-209‑1934; Fax: (82)-(031)-209‑1899.
