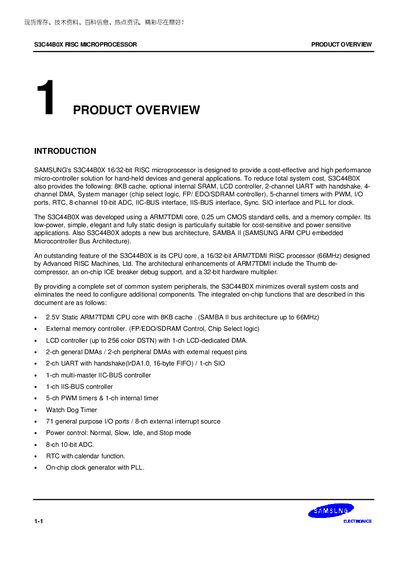

Samsung S3C44B0X RISC Microprocessor Manual
User Manual 424 pages · 1.9 MB · EN
This manual describes the Samsung S3C44B0X 16/32‑bit RISC microprocessor, its architecture, integrated peripherals, and system manager. It includes detailed feature tables, block diagrams, and pin‑assignment listings for both 160‑LQFP and 160‑FBGA packages.
Additional sections cover mechanical data, package dimensions, and notes for JTAG testing, giving engineers the information needed to design and debug hardware based on the S3C44B0X.
Samsung S3C44B0X specifications
| CPU core voltage | 2.5 V |
|---|---|
| Maximum operating frequency | 66 MHz |
| Package types | 160 LQFP / 160 FBGA |
| ADC channels | 8‑channel 10‑bit |
| General‑purpose I/O ports | 71 |
| UART channels | 2‑channel with handshake |
| Timer channels | 5‑channel timers with PWM |
