This manual is the product manual of GA-7VRX/GA-7VRXP motherboard manufactured by G.B.T. Technology Träding GMbH.

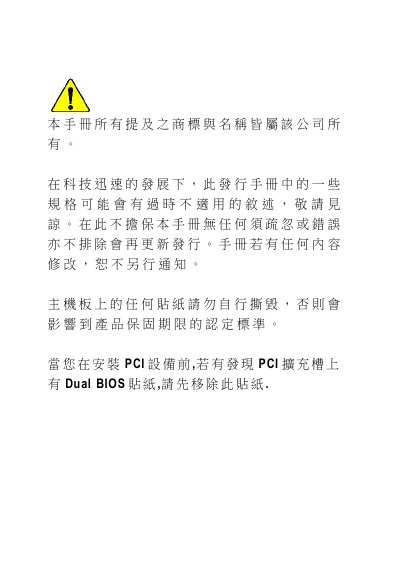

This manual provides step‑by‑step instructions for installing the GA‑7VRX/GA‑7VRXP motherboard, including safety precautions such as powering off the system, using anti‑static measures, and handling components carefully. It also details the required accessories and warns against removing Dual BIOS stickers before PCI installation.
The guide walks through CPU, memory, and expansion‑card installation, connector wiring, and BIOS setup. It includes feature summaries, chipset configuration, power‑saving options, RAID support, and troubleshooting information, ending with technical reference tables and appendices.
| Form factor | ATX 30.5 cm x 23.5 cm |
|---|---|
| Supported CPU | AMD Athlon / Athlon XP / Duron Socket A |
| CPU cache | 128K L1, 256K/64K L2 |
| System bus | 200/266 MHz FSB |
| Northbridge | VIA KT333 |
| Southbridge | VT8233A (CE) |
| Memory slots | 3 DDR DIMM 184‑pin slots |
| Maximum memory | 3.0 GB DDR |
| AGP slot | 1 slot, 4×/2×, AGP 2.0 compatible |
| PCI slots | 5 slots, 33 MHz, PCI 2.2 compliant |
| IDE ports | 2 IDE bus master (ATA 66/100/133) with RAID |
The motherboard provides five PCI slots.
