The TL-D LIFEMAX Super 80 TL-D 36W/830 1SL is a low-pressure mercury discharge lamp with a 26mm tubular envelope. The lamp has a light source power of 36W and a luminous flux of 3250lm. The lamp's efficiency is 90 lm/w. The lamp has a lifetime of 15000 hours.
The TL-D 36W/830 1SL Super 80 is a low‑pressure mercury discharge lamp with a 26 mm tubular envelope, designed for general lighting. It uses a G13 base and T8 (26 mm) tube, delivering warm white light at 3000 K.

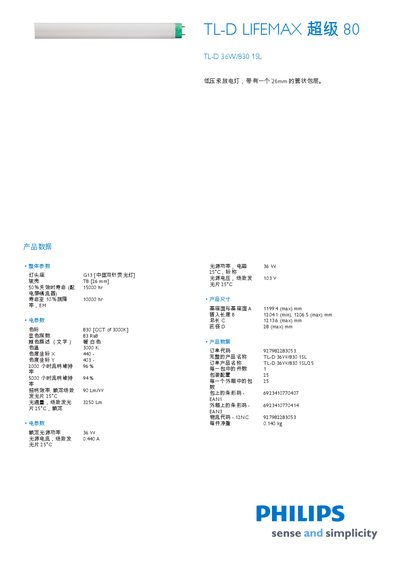

The manual lists key parameters such as 36 W power, 15000 h rated life, 3250 lm luminous flux, 90 lm/W efficacy, and dimensions up to 1199.4 mm length and 28 mm diameter. Packaging information, barcodes, and logistics codes are also included. This manual is written in Chinese.
| Lamp Base | G13 |
|---|---|
| Tube Size | T8 (26 mm) |
| Rated Life | 15000 h |
| Luminous Flux | 3250 lm |
| Total Length (max) | 1199.4 mm |
| Diameter (max) | 28 mm |
| Net Weight | 0.140 kg |
The lamp is rated for 15000 hours of operation.
The lamp’s total length is up to 1199.4 mm and its diameter up to 28 mm.
