Start here

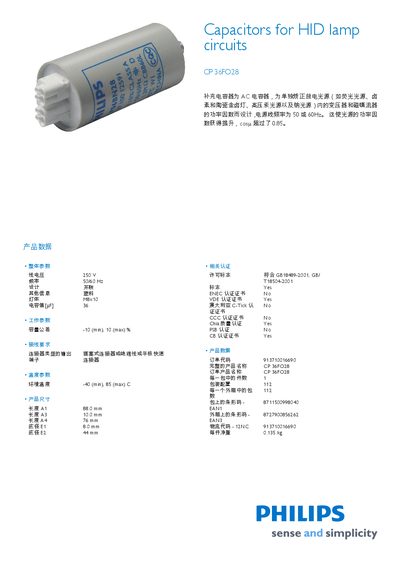

Philips CP 36FO28 Capacitor Datasheet
Datasheet 2 pages · 627 KB · ZH
The CP 36FO28 is a capacitor designed for HID lamp circuits, offering a rated voltage of 250 V and a power factor of 0.85. It complies with standards such as GB18489‑2001 and ENEC.
Key specifications include a capacitance tolerance of ±10 %, an operating temperature range from –40 °C to 85 °C, and compact dimensions (88 mm × 10 mm × 76 mm). Packaging details list a single unit per box with a net weight of 0.135 kg. This manual is written in Chinese.
Philips 36FO28 specifications
| Rated Frequency | 50 or 60 Hz |
|---|---|
| Capacitance Tolerance | -10% to +10% |
| Operating Temperature Range | -40 °C to 85 °C |
| Power Factor | 0.85 |
All Philips 36FO28 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the CP 36FO28 operate in?
It can operate from –40 °C up to 85 °C.
What is the capacitance tolerance of the CP 36FO28?
The capacitance tolerance is –10 % to +10 %.
What temperature range can the CP 36FO28 operate in?
It can operate from –40 °C to +85 °C.
From: Philips CP 36FO28 Capacitors for HID Lamp Circuits Datasheet
