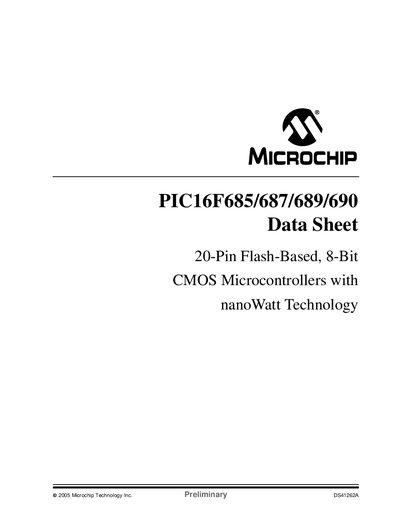

This is a data sheet about PIC16F685/687/689/690
The PIC16F685/687/689/690 family are 20‑pin flash‑based, 8‑bit CMOS microcontrollers featuring nanoWatt low‑power technology. They are offered in PDIP, SOIC, SSOP and QFN packages and include a high‑performance RISC CPU with only 35 instructions, an 8‑level deep hardware stack, and a range of low‑power modes such as Sleep and Ultra‑Low‑Power Wake‑up.
Key on‑chip peripherals include a 10‑bit, 12‑channel ADC, two analog comparators, an enhanced USART supporting RS‑485/RS‑232/LIN, SPI/I²C (SSP), multiple timers (Timer0, Timer1 with gate control, Timer2), and an ECCP+ PWM module. Memory options provide up to 4 KB Flash, 256 B RAM and 256 B EEPROM with high endurance and long data retention.
| Operating voltage range | 2.0 V – 5.5 V |
|---|---|
| Maximum CPU clock | 20 MHz |
| Flash program memory (PIC16F685) | 4 KB (4096 bytes) |
| RAM (all models) | 256 bytes |
| EEPROM (all models) | 256 bytes |
| Standby current | 1 nA @ 2.0 V (typical) |
| A/D converter resolution | 10‑bit, up to 12 channels |
| Flash endurance | 100 k write cycles |
| EEPROM endurance | 1 M write cycles |
The devices operate from 2.0 V to 5.5 V, covering both industrial and extended temperature ranges.
The PIC16F685 includes 4 KB (4096 bytes) of flash program memory.
Typical standby current is 1 nA at 2.0 V.
The on‑chip ADC offers 10‑bit resolution with up to 12 input channels.
