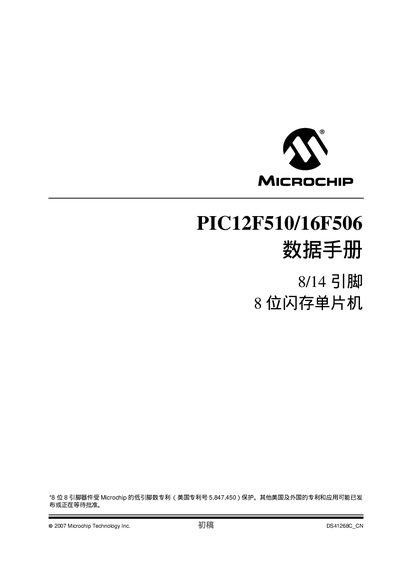

The Microchip PIC12F510/16F506 datasheet provides specifications, pin configurations, memory organization, and functional details for these microcontrollers.
This datasheet describes the PIC12F510 and PIC16F506 8‑bit microcontrollers, covering their architecture, instruction set, and peripheral features. It includes pin‑out diagrams, electrical characteristics, and programming information.
The document is intended for designers and engineers who need detailed technical data to integrate these devices into embedded applications, such as low‑power control, sensor interfacing, and simple digital logic. This manual is written in Chinese.
| Operating Voltage | 2.0 V – 5.5 V |
|---|---|
| Operating Temperature | -40 °C – +125 °C |
| Program Memory | 1024 words |
| Data EEPROM | 38 bytes |
| RAM | 6 bytes |
The devices operate from 2.0 V to 5.5 V.
Each device has 1024 words of flash program memory.
They are rated for -40 °C to +125 °C.
